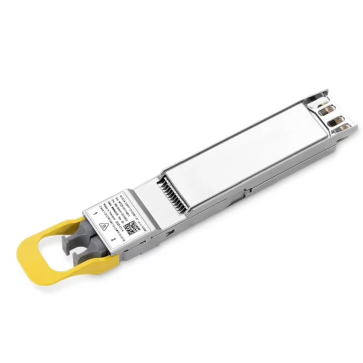

NVIDIA MMS4A00-XM 1.6Tb/s 2-port OSFP Optical Transceiver

NVIDIA MMS4A00-XM is a 1.6Tb/s (1600Gbps) twin-port OSFP optical transceiver designed for high-density InfiniBand XDR networks. Unlike the single-port MMS4A20, this module combines two independent 800Gb/s DR4 optical engines within a single OSFP224 pluggable shell to maximize switch-port bandwidth density.

NVIDIA MMS4A00-XM Optical Transceiver Specifications:

Product Overview
--------------------------------------
* Device Type: Twin-Port Optical Transceiver
* Aggregate Data Rate: 1.6 Tb/s (1600 Gbps)
* Port Configuration: Dual-Port (2 x 800 Gb/s)
* Protocol Support: InfiniBand XDR
* Form Factor: OSFP224 (Twin-port architecture)
* Compliance: CMIS 4.0 / Secure Firmware Boot

Part Numbers & Compatibility
--------------------------------------
* Finned Top (Air-Cooled): 980-9IAH1-00XM00 (MMS4A00-XM)
* Flat Top (Liquid-Cooled): 980-9IAH0-00XM00 (MMS4A00-XM-FLT)
* Target Systems: Quantum-X800 QM3x00 Switches, Blackwell DGX Infrastructure

Optical & Fiber Specifications
--------------------------------------
* Optical Standard: 2xDR4 / DR8 (Data Center Short Reach)
* Optical Reach: Up to 500 meters
* Wavelength: 1310 nm (Center: 1311 nm)
* Fiber Type: Single Mode Fiber (SMF)
* Optical Interfaces: Two MPO-12/APC (MTP) connectors
* Transmitter Type: DFB Laser / EML

Electrical & Signal Specifications
--------------------------------------
* Electrical Modulation: 8 channels x 200G-PAM4 (Aggregate 1.6T)
* Optical Modulation: 2 ports x [4 channels x 200G-PAM4]
* DSP Core: Integrated Broadcom 3nm Intelligent DSP (Sian3 / BCM83628)

Power & Environmental
--------------------------------------
* Supply Voltage: 3.3V
* Power Consumption: Up to 33.5W maximum
* Operating Temperature: 20°C to 70°C
