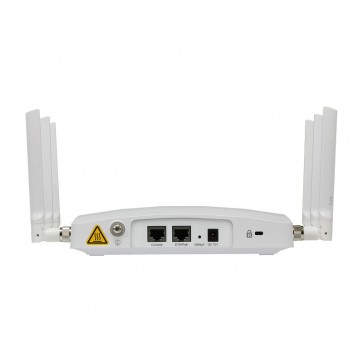

Huawei AP7110DN-AGN Access Point

* Protocol: 802.11a/b/g/n

* Frequency bands: 2.4GHz & 5GHz

* Indoor dual-frequency AP with external antennas

* Power support: PoE+

* Antennas: 3x3 MIMO, Beamforming

* PHY data rates: 450Mbps x 2

* Maintenance: dying gasp

Sign up for price alert

Availability: In stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!


Huawei AP7110DN-AGN is a premium series dual-band access point (AP) that supports 3*3 MIMO and supports 2.4 GHz and 5 GHz frequency bands. It complies with IEEE 802.11a/b/g/n, and has enhanced coverage performance and protection capabilities.

Huawei AP7110DN-AGN integrates the latest and widely-used WLAN technology to provide high-performance wireless services for medium to large enterprises and high-density scenarios. The AP7110DN-AGN APs can be flexibly deployed in these places and work in both Fit AP and bridge mode.

Huawei AP7110DN-AGN AP Features:

* 2.4 GHz and 5 GHz frequency bands

* Compatibility with IEEE 802.11a/b/g/n

* Antennas: 3x3 MIMO, Beamforming

* PHY data rates: 450Mbps x 2

* RP-SMA External antennas

* Simple network deployment

* Automatic AC discovery and configuration

* Real-time management and maintenance


Huawei AP7110DN-AGN AP Specifications:

* IEEE 802.11a/b/g/n, 2.4 GHz/5 GHz

* Interfaces:
- 1 x 1000Base-T - RJ-45
- 1 x management - RJ-45

* Antenna type: External antennas, RP-SMA

* Antenna gain: 2.4 GHz(2.5 dBi)/ 5 GHz(4 dBi)

* Maximum number of users: ≤ 256

* Security: AES, TKIP, WPA, WPA2

* 12 V DC ± 10%

* PoE power supply: -48 V DC

* Maximum power consumption: 15.7W

* Maximum transmit power: 20 dBm for each radio port(Note: The actual transmit power depends on local laws and regulations.)

* Power increment: 1 dBm

* Operating temperature: -10oC to +55oC

* Storage temperature: -40oC to +70oC

* Operating humidity: 5% to 95% (non-condensing)

* Waterproof and dustproof grade: IP41

* Altitude: -60 m to 4,000 m

* Dimensions (W x D x H): 200 mm x 200 mm x 45 mm

* Weight: 1.0 kg
