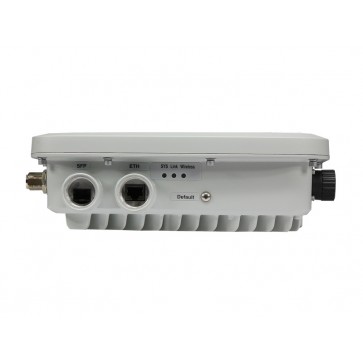

Huawei AP6610DN-AGN Outdoor Wireless Access Point

Huawei AP6610DN-AGN is an enhanced series dual-frequency Access Point (AP). With a high level of physical protection, it is applicable to pedestrian areas, factories, and other challenging environments, meeting the outdoor network deployment requirements. Huawei AP6610DN-AGN can work as a Fat AP or Fit AP and switch flexibly between the two working modes based on the network plan.

Huawei AP6610DN-AGN AP is applicable to open outdoor areas with high user densities, such as squares, residential communities, schools, and gardens, or outdoor places that have high demands for wireless access, such as pedestrian malls. This AP can be used together with outdoor antenna to provide long-distance network coverage and implements stable radio backhaul in a wireless distribution system.

Huawei AP6610DN-AGN Features:

* Outdoor dual-band AP with external antennas

* SFP and AC power supply

* Protocol: 802.11 a/b/g/n

* Frequency bands: 2.4GHz & 5GHz

* Power support: AC Power Supply

* Antennas: 2x2 MIMO, Beamforming

* PHY data rates: 300 Mbps x 2

* Interface: SFP

* Maintenance: dying gasp

Huawei AP6610DN-AGN technical Specifications:

* Radio Protocols: 802.11a/b/g/n, dual band(2.4GHz & 5GHz)

* 2 x 2 MIMO

* Highest Rate: 600 Mbit/s

* Maximum Number of Concurrent Users: ≤ 256

* Maximum Power Consumption: 30W

* Maximum Transmit Power: 30 dBm (combined power)

* MIMO: Spatial Streams: 2 x 2:2

* Antenna Type: Dual-polarization antenna or common outdoor antenna

* IP67 dustproof and waterproof protection

* IPv6 support

* Integrated Fit and Fat AP functions

* Rated voltage: 100V AC to 240V AC, 50/60 Hz

* Maximum voltage range: 90V AC to 264V AC, 47 Hz to 63 Hz

* Wireless Intrusion Detection System (WIDS)/Wireless Intrusion Prevention System (WIPS)

* Operating Temperature: -40℃ to +60℃

* Built-in, high-level surge protector simplifies deployment and reduces costs

* Dimensions (H x W x D): 255 mm x 255 mm x 83 mm

* Pack Weight(kg): 3.7
