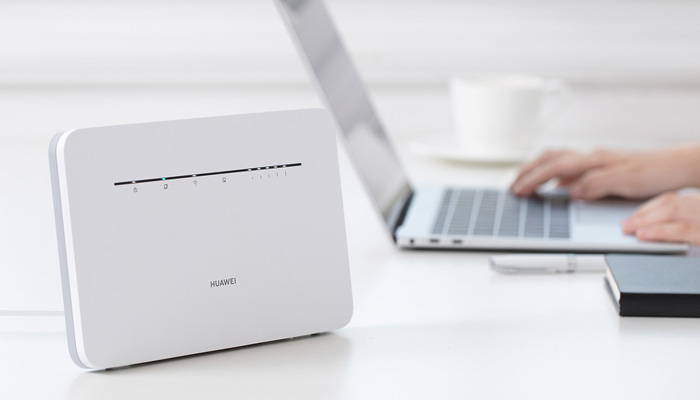

Huawei 4G Router 3 Pro B535 LTE Cat7 WiFi Router
* Communication Standard: 3GPP Release 11, LTE CAT7
* 4G LTE DL 300Mbps/UL 100Mbps
* WiFi 802.11ac/a/n 2 x 2 & 802.11b/g/n 2 x 2, MIMO
* Two 4G antenna extension ports
* 1 Wan / Lan GE port, 3 Lan GE port, one SIM card slot (micro-SIM)
Availability: In stock
Huawei 4G Router 3 Pro Specifications:
4G
------------------------------
* Communication Standard: 3GPP Release 11, LTE CAT7
* Applicable Network: 4G
* 4G Transmission Rate: 300Mbps / 100Mbps (Theoretical value. The actual rate depends on the operator)
* Network Frequency Band: LTE: B1 / B3 / B7 / B8 / B20 / B28 / B32 / B38, UMTS: B1 / B8
* Antenna Type: LTE / UMTS main and diversity antennas
Processors
------------------------------
* Balong chip, Gigahome dual-band Wi-Fi chip
Wireless
------------------------------
* Transmission Standard: 802.11ac/a/n 2 x 2 & 802.11b/g/n 2 x 2, MIMO
* Wireless Transmission Rate: DBDC, 1167Mbps
* Wireless Frequency Band: 2.4GHz & 5GHz, band steering
* Antenna Type: Dual-band Wi-Fi antenna
Network Port
------------------------------
* 1 Wan / Lan GE port, 3 Lan GE port, one SIM card slot (micro-SIM)
Antenna
------------------------------
* Two 4G antenna extension ports, allowing users to purchase antennas
Button
------------------------------
* Reset / Power / H, support HUAWEI HiLink device one-button pairing, compatible with WPS
Led Indicator
------------------------------
* 4G / Wi-Fi / Lan / Power / Signal Strength indicators
Power Supply
------------------------------
* Power: < 12W
* AC / DC Power Supply: AC: 100V - 240V 50Hz / 60Hz, DC: 12V / 1A
Environment
------------------------------
* Temperature: Operating temperature: 0 °C ~ 40 °C, storage temperature: -20 °C ~ +70 °C
* Humidity: 5% ~ 95% (non-condensing)
Colour
------------------------------
* White
Dimensions and Weight
------------------------------
* 219mm x 138mm x 25.6mm
* About 325g (excluding the power adapter)
Packing List
------------------------------
* HUAWEI 4G Router 3 Pro: 1 (standard configuration)
* Power Adapter: 1 (standard configuration)
* Socket: 1 (standard configuration)
* Quick Start: 1 (standard configuration)
* Ethernet Cable: 1 (optional)
* Warranty Card: 1 (optional)
-----------------------------------------------------------------------------------------
If you need the external antenna for Huawei B535 Router, we would like to recommend the two antennas. We had tested the antennas and they can work well with Huawei B535 LTE Router:
Huawei 4G Router 3 Pro Indoor Antenna:
http://www.4gltemall.com/4g-antenna-two-sma-connector.html
If you prefer 4G outdoor antenna to get a better signal, you could try the antenna:
http://www.4gltemall.com/4g-lte-outdoor-antenna-2-x-sma-connectors.html
