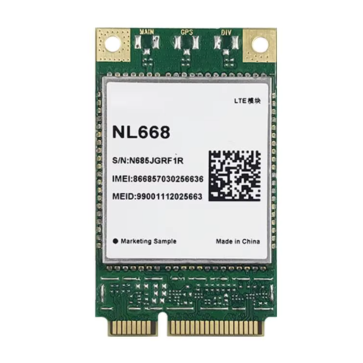

Fibocom NL668-JP LTE Cat4 MiniPCIe Module

Fibocom's NL668-JP MiniPCIe is an LTE Cat 4 wireless communication module that supports LTE networks with WCDMA/GSM fallback, achieving downlink speeds of up to 150Mbps DL and uplink speeds of 50Mbps. This module uses the MiniPCIe form factor and measures 51.0*30.0*3.7mm. Featuring high performance, low latency, and high reliability, it is primarily suited to the Japanese IoT market.

The Fibocom NL668-JP MiniPCIe module supports a wide range of industry-standard interfaces and multiple Internet protocols, meeting the diverse hardware and software needs of IoT products. This module enables seamless connectivity for multiple IoT applications, including industrial routers, industrial gateways, IPCs, and C-V2X.

The NL668-JP MiniPCIe series offers multiple memory configurations, enabling high-speed and stable operation. It also supports diversity antennas, improving the quality and reliability of wireless connections.

Fibocom NL668-JP MINI PCIe 4G Module Specifications:

* Package: Mini PCIe

* Dimensions (mm): 51.0*30.0*3.7

* LTE FDD: B1/3/8/11/18/19/21/26/28

* LTE TDD: B41

* WCDMA: B1/6/8/19

* Power Supply: 3.3V - 4.3V (Typical 3.8V)

* Operating Temp: -30°C to +75°C

* Extended Temp: -40°C to +85°C

* Data Transmission
- LTE FDD (Mbps): 150 (DL)/ 50 (UL)
- LTE TDD (Mbps): 130(DL)/ 30.5(UL)
- DC-HSPA+(Mbps): 42(DL)/ 5.76(UL)
- WCDMA (kbps): 384 (DL)/ 384 (UL)

* Functions
- eSIM: Optional
- Remote SIM: ●
- eCALL: ●
- OpenCPU: Optional
- Jamming Detection: ●
- FOTA: DFOTA
- OS Drivers: Linux/Windows/Android
- GNSS: Optional
- TTS: Optional
- Analog Audio: ●
- Protocols: TCP/UDP(S)/HTTP(S)/FTP(S)/IPv4/IPv6/SSL/TLS/MQTT/PING/NTP/FFS/NITZ/PPP/ECM/RNDIS/GobiNet/QMI_WWAN

* Interfaces
- SIM x1, 1.8V/ 3.0V
- USB x1, USB 2.0
- PCIe ●
- UART x2
- SPI ●
- ADC
- GPIO ●
- SDIO ●
- PCM ●
- SGMII ●

* Certification
- Regulation: RoHS/JATE/TELEC
- Operator: DOCOMO/Softbank/KDDI
