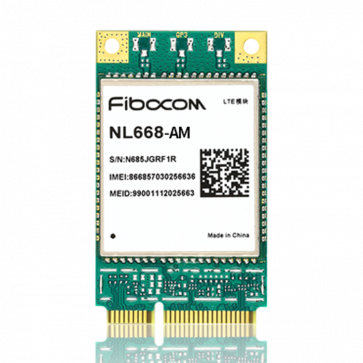

Fibocom NL668-AM LTE Cat4 Module

Fibocom NL668-AM LTE Module Specifications:

* Product type: LTE Module

* Category: LTE Cat4

* Form factor: LCC or Mini PCIe

* Supported frequency bands:
- LTE FDD Band 2/4/5/12/13/66/71
- WCDMA: Band 2/4/5

* Operating Temperature：-40℃~+85℃

* Storage Temperature: -40℃~+85℃

* Operating Voltage: 3.3V~4.3V typical 3.8V

* Data rates:
- LTE FDD:150Mbps DL/50Mbps UL
- UMTS: 384 kbps DL/384 kbps UL
- HSPA/HSPA+: 42Mbps DL/5.76Mbps UL

* Interface:
- SIM Card: 1.8V/3.0V
- USB 2.0
- UART
- I2C
- PCM/I2S
- ADC
- SDIO
- SPI
-SGMII
- GPIO
- Antenna: Main/Div/GNSS

* Driver
- Linux/Android/Windows
- 3GPP TS 27.007 and 27.005, and proprietary FIBOCOM AT commands

* TX power
- WCDMA: 23.5dBm±1dB
- LTE FDD: 23.0dBm±1dB

* Function
- MUX: Basic Mode
- SMS: MO/MT Text and PDU modes
- HTTP(S)/PPP/FTP(S)/TCP(S)/UDP/IPV4/IPV6/NITZ/NTP/SSL
- ECM/RNDIS/PPP/Gobinet
- DFOTA/FOAT
- VoLTE/TTS/Recording/FFS/BIP
- GNSS/LBS/CellD
- OpenLinux

* Approval
- FCC/GCF/IC
- VZW*/AT&T/PTCRB/TMO
- RoHS/HF
