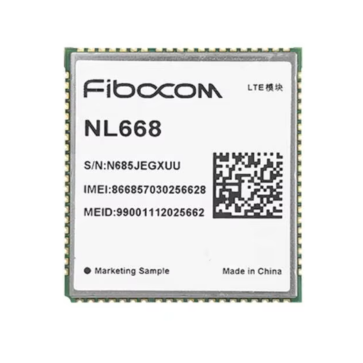

Fibocom NL668-JP LTE Cat4 LGA Module

Fibocom's NL668-JP is an LTE Cat 4 wireless communication module that supports LTE networks with WCDMA fallback, achieving downlink speeds of up to 150Mbps DL and uplink speeds of 50Mbps. This module uses an LCC+LGA form factor and measures 32.0*29.0*2.4mm.

Featuring high performance, low latency, and high reliability, it is primarily suited to the Japanese IoT market. The Fibocom NL668-JP module supports a wide range of industry-standard interfaces and multiple Internet protocols, meeting the diverse hardware and software needs of IoT products.

This Fibocom NL668-JP module enables seamless connectivity for multiple IoT applications, including industrial routers, industrial gateways, IPCs, and C-V2X. The NL668-JP series offers multiple memory configurations, enabling high-speed and stable operation. It also supports diversity antennas, improving wireless connection quality and reliability.

Fibocom NL668-JP 4G Module Specifications:

* Package: LCC+LGA

* Dimensions (mm): 32.0*29.0*2.4

* LTE FDD: B1/3/8/11/18/19/21/26/28

* LTE TDD: B41

* WCDMA: B1/6/8/19

* Power Supply: 3.3V - 4.3V (Typical 3.8V)

* Operating Temp: -30°C to +75°C

* Extended Temp: -40°C to +85°C

* Data Transmission
- LTE FDD (Mbps): 150 (DL)/ 50 (UL)
- LTE TDD (Mbps): 130(DL)/ 30.5(UL)
- DC-HSPA+(Mbps): 42(DL)/ 5.76(UL)
- WCDMA (kbps): 384 (DL)/ 384 (UL)

* Functions
- eSIM: Optional
- OpenCPU: Optional
- FOTA: DFOTA
- OS Drivers: Linux/Windows/Android
- GNSS: Optional
- TTS: Optional
- Protocols: TCP/UDP(S)/HTTP(S)/FTP(S)/IPv4/IPv6/SSL/TLS/MQTT/PING/NTP/FFS/NITZ/PPP/ECM/RNDIS/GobiNet/QMI_WWAN

* Interfaces
- SIM x1, 1.8V/ 3.0V
- USB x1, USB 2.0
- PCIe NA
- UART x2
- SPI ●
- ADC x2
- GPIO ●
- SDIO ●
- PCM ●
- SGMII ●

* Certification
- Regulation: RoHS/JATE/TELEC
- Operator: DOCOMO/Softbank/KDDI
