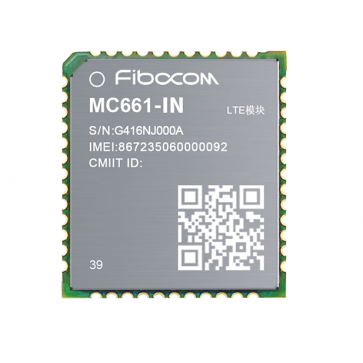

Fibocom MC661-IN LTE Cat 1 bis IoT Module

Fibocom MC661-IN is an LTE Cat 1 bis wireless communication module adopting LCC+LGA form factor, with the size of 17.7±0.15mm*15.8±0.15mm*2.4±0.2mm. MC661-IN supports China & India frequency band. Fibocom MC661-IN has built-in rich network protocols and integrates multiple universal interfaces and supports a variety of driver and software functions (such as Linux/Android/Windows and other mainstream operating systems) to meet the demands of various applications in the IoT industry.

Fibocom MC661-IN is perfectly suitable for low and mid-speed IoT scenarios, such as tracker, universal payment, sharing, industrial interconnection, security monitoring, BMS, vehicle, etc., providing customers with reliable connectivity and robust security.

Fibocom MC661-IN Module Specifications:

* Target region: India

* Package: LCC+LGA

* Dimension (mm): 17.7x15.8x2.4

* Frequency bands:
LTE FDD: B1/3/5/8
LTE TDD: B34/38/39/40/41(full band)

* Power Supply: <3.4V ~ 4.5V (Typical 3.8V)

* Operating Temp: -35°C ~ +75°C

* Extended Temp: -40°C ~ +85°C

* Data Transmission
LTE FDD (Mbps): 10.3(DL)/5.1(UL)
LTE TDD (Mbps): 9.1(DL)/3.1 (UL)

* Functions
WiFi-Scan：
SIM x2, 1.8V/3.0V
BLE NA
eCALL NA
OpenCPU< ●
MUX NA
Dual SIM NA
Jamming Detection NA
USSD NA
STK NA
LBS NA
FOTA DFOTA
OS Drivers: Linux/Windows/Android
GNSS NA
MMS NA
CSD NA
TTS NA
SMS ●
Audio< NA
Voice Code NA
Audio Play/Record NA
Protocols TCP/UDP/HTTP/HTTPS/FTP/FTPS/SFTP/
Heart Beat/MQTT/SSL/TLS/ECLOUD/
LwM2M support built in protocol stack support IPV6

* Interfaces
SIM x2
USB x1, USB2.0
PCIe NA
UART
x2 (Standard version)
x4 (OpenCPU version)

SPI ●
ADC x2
GPIO ●

* Regulation: RoHS
