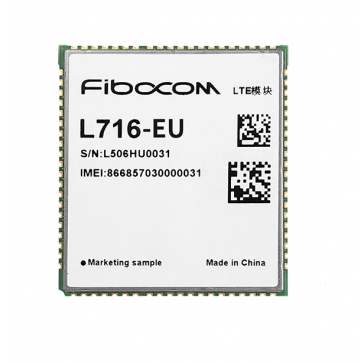

Fibocom L716-EU MiniPCIe LTE Cat 4 Module

Fibocom L716-EU-MiniPCIe is a LTE Cat 4 wireless communication module which supports LTE-FDD network and WCDMA/ GSM fallback, delivering a maximum downlink rate of Cat 4 150 Mbps DL and uplink rate of 50 Mbps. The module adopts MiniPCIe form factor, with the size of 51.0*30.0*3.7mm. Featuring high performance, low latency and high reliability, it is mainly suitable for the IoT market in EMEA and APAC.

Fibocom L716-EU-MiniPCIe model supports rich industry-standard interface and multiple Internet protocols, meeting the diverse hardware/ software demands of IoT products. The module enables seamless connectivity for a variety of IoT applications such as industrial router, industrial gateway, public security, C-V2X, etc.

Fibocom L716-EU-MiniPCIe Module Specifications:

* Target region: Europe

* Package: MiniPCIe

* Dimension (mm): 51.0*30.0*3.7

* Frequency bands:
LTE FDD: B1/3/7/8/20/28
LTE TDD: B38/40/41
WCDMA: B1/5/8
GSM/GPRS/EDGE: 850/900/1800MHz

* Power Supply: 3.3V - 4.4V (Typical 3.8V)

* Operating Temp: -35°C ~ +75°C

* Extended Temp: -40°C ~ +85°C

* Data Transmission
LTE FDD (Mbps): 150 (DL)/ 50 (UL)
LTE TDD (Mbps): 130 (DL)/ 30.5 (UL)
GPRS(Kbps): 42(DL)/ 5.76(UL)
WCDMA(kbps): 384 (DL)/ 384 (UL)
EDGE(Kbps): 236.8(DL)/ 236.8(UL)
GPRS(Kbps): 85.6(DL)/ 85.6(UL)

* Functions
OpenCPU Optional
MUX
USSD
FOTA：DFOTA
OS Drivers： Linux/Windows/Android
TTS： Optional
SMS
Digital Audio
Voice Code
Audio Play/Record： Optional
Protocols： TCP(S)/UDP/HTTP(S)/FTP(S)/IPv4/IPv6/SSL/TLS/MQTT/PING/NTP/FFS/NITZ/PPP/ECM/RNDIS/GobiNet/QMI_WWAN

* Interfaces
SIM x1, 1.8V/ 3.0V
USB x1,USB2.0
UART x2
PCM ●

* Regulation: RoHS/REACH/CE/UKCA
