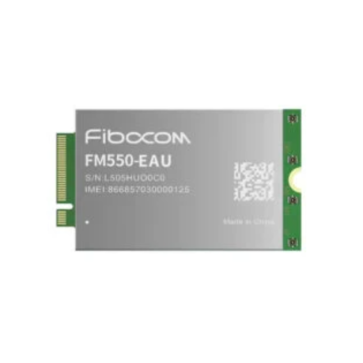

Fibocom FM550-EAU 5G Sub-6GHz Module

Fibocom FM550-EAU is the M.2 form factor version of the Fx550 series, optimized for Europe, Asia, and Australia (EAU). While it shares the same Samsung Exynos core architecture as the FG550-EAU, its physical design is tailored for standard M.2 slots commonly found in laptops, gateways, and industrial routers.

Fibocom FM550-EAU 5G Module Specifications:

* Chipset: Samsung S5300 (4nm process) with an integrated 1.5 GHz single-core ARM Cortex-A55 processor.

* 3GPP Compliance: Release 16.

* Form Factor: M.2 package

* Dimensions: 30.0 mm x 52.0 mm x 2.3 mm

* Operating Voltage: 3.3V to 4.4V (Typical 3.8V).

* Operating Temperature: -25°C to +75°C (Extended: -25°C to +85°C ).

Network & Data Transmission
------------------------------------------------
* Cellular Standards: 5G NR SA/NSA, 4G LTE-FDD/TDD, and 3G WCDMA.

* 3GPP Release: Release 16 compliant.

* Peak Data Rates:
- 5G NSA: Up to 6.47 Gbps (Download) / 1.25 Gbps (Upload).
- 5G SA: Up to 4.67 Gbps (Download) / 1.25 Gbps (Upload).

* Carrier Aggregation: Supports up to 5CC NR CA in SA mode (200MHz bandwidth).

* MIMO: Supports 4x4 MIMO for downlink and 2x2 MIMO for uplink.

Frequency Bands
------------------------------------------------
* 5G NR Sub-6GHz: n1, n3, n5, n7, n8, n20, n26, n28, n38, n40, n41, n66, n67, n71, n75, n76, n77, n78.

* 4G LTE FDD: B1, B3, B5, B7, B8, B20, B26, B28, B32, B66, B67, B71.

* 4G LTE TDD: B38, B40, B41, B42, B43, B48.

* 3G WCDMA: B1, B3, B5, B8.

Interfaces & Additional Features
------------------------------------------------
* Hardware Interfaces: USB 2.0, PCIe Gen3, UART, SPI, PCM, and GPIO.

* GNSS Support: Integrated receiver for GPS, GLONASS, Galileo, and BeiDou (L1 frequency)

* Software Drivers: Compatible with Linux, Android, and Windows operating systems.

* Enhanced Services: Supports DFOTA (Delta Firmware Over-the-Air), eSIM (optional), and standard AT command sets (3GPP TS 27.007/27.005).
