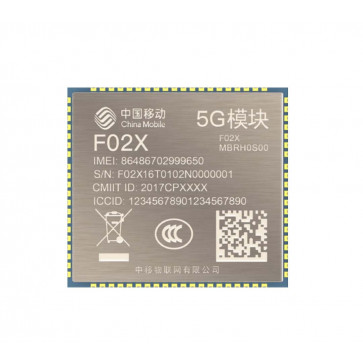

China Mobile OneMO F02X 5G Module

China Mobile OneMO F02X is a new multi-mode industrial 5G wireless module based on Qualcomm SDX 55 chipset. It supports 5G NR/TDD-LTE/FDD-LTE/HSPA+ network technologies and provides GNSS navigation service besides dual-mode 5G(NSA/SA). The OneMO F02X is in LGA form factor and mainly for vedio recording, VR/AR, and Industrial Internet etc...

OneMO F02X 5G Module Specifications:

* Product type: 5G wireless module

* Platform: Qualcomm Snapdragon X55 chipset

* Support 5G NR/TDD-LTE/FDD-LTE/HSPA+ technologies

* Form factor: LGA package

* Network frequency bands:
- 5G NR Band: n41/n77/n78/n79
- LTE-TDD Band: B34/B39/B40/B41
- LTE-FDD Band: B2/B7/B12/B17/B20
- WCDMA/HSPA+ Band: B1/B2/B5/B8

* 5G Sub-6 Data rates:
- 1.2Gbps; 100MHz BW; MIMO 2x2(DL)
- >2Gbps; 100MHz BW; MIMO 4x4(DL)

* LTE Data rates: Cat18 (UL)/Cat22(DL)

* Power: 3.4V ~ 4.3V, typ 3.8V

* Working temperature: -35℃ ~ +75℃

* Interfaces:
- USIM and E-SIM Interface
- I2S for Audio
- USB3.1
- SPI
- PCIe
- I2C
- GPIO(General-Purpose I/O) x 72 (Overall CPU GPIO Pin)
- Antena x 8 Support 4x4 MIMO

* Support USB/FOTA* Firmware update

* IPV4/IPV6

* Support Windows 10, Linux OS

* 3GPP TS 27.007 and 27.005

* Dimensions: 42.0mm x 42.0mm x 2.45mm

* Applications: Vedio recording, VR/AR, and Industrial Internet etc...

* Approvals: CCC*/SRRC*/NAL*
