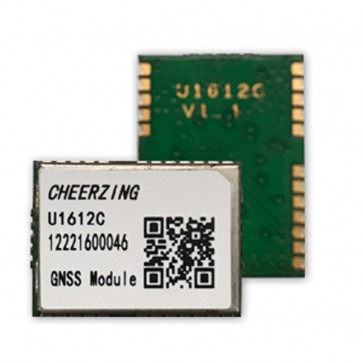

Cheerzing U1612C BDS/GPS GNSS Module
* GNSS: GPS/BeiDou/GLONASS
* Package & Pin: 24pin LCC
* SBAS: WAAS,EGNOS,MSAS,GAGAN,SDCM
* Baud Rate: 9600bps
Availability: Out of stock
$89.00
Details
Details
Cheerzing U1612C GNSS Module Specifications:
* GNSS: GPS/BeiDou/GLONASS
* Size(mm): 16.0×12.0×2.9
* Package & Pin: 24pin LCC
* Bands
- L1:1575.42MHz
- B1:1561.098MHz
* Temperature Range: -40℃~85℃
* Sensitivity
> -148 dBm @acquisition
> -162 dBm @tracking
* Receiver Type
- Channels: 72
- SBAS: WAAS,EGNOS,MSAS,GAGAN,SDCM
* TTFF
- Cold Start: <28s，reacquisition<1s
- Hot Start: <1s，reacquisition<1s
* Position Accuracy: 2.5m CEP
* Velocity Accuracy: 0.1 m/s
* Time Accuracy: 25 ns
* Antenna Type: Active，Passive
* Power Supply Voltage: 2.6V~3.6V
* Power Consumption
- 29mA @acquisition
- 11uA @sleep, typ.
* Application Fields: Telematics, Wireless POS etc.
