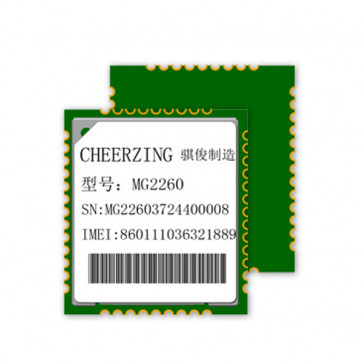

Cheerzing MG2260 2G Quad-band GSM/GPRS Module

* 2G GSM/GPRS Quad-band module

* Cost-effective and High-performance

* Low power consumption

* Wide temperature range

* LCC form factor

Sign up for price alert

Availability: In stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!


Cheerzing MG2260 is a Quad-band GSM/GPRS (850/900/1800/1900)module. With tiny size of 17.7×15.8×2.5mm, it can meet the requirements of various compact demands.

Cheerzing MG2260 indtroduces easy to weld in a LCC type which include both hand weld and standard SMT manufacture to meet the requirements of customers who are sensitive for cost savings. Cheerzing MG2260 module delivers ultra-low power consumption and wide operating temperature together with high-performance and cost-effective advantages in a tiny size. It can be applied to various fields of M2M application such as telematics, wearables, security monitor and smart healthcare etc.

Cheerzing MG2260 Specifications and features:

* GSM Specification
- GSM/GPRS Quad-band: 850/900/1800/1900 MHz
- GPRS Multi-Slot: Class 12
- GPRS Mobile Station: Class B
- Compliant to GSM Phase2/2+: Class 4 (2W @850/900MHz) and Class 1 (1W @1800/1900MHz)

* Power Supply: 3.3~4.2V Typical 3.8V

* Power Consumption: Average current 1.8mA @Idle

* Size: 17.7×15.8×2.5mm

* Weight: Approx 1.3g

* Package & Pin: 44pin LCC

* Temperature Range: -30℃~70℃

* Extended Operating Temperature: -40℃~85℃

* Storage Temperature: -40℃~100℃

* AT Commands
- Standard AT commands(3GPP TS 07.05、3GPP TS 07.07)
- CHEERZING AT command extension: Device control command, Protocol transmission command

* Interfaces
- SIM/USIM interfaces: 1.8V/3.0V
- UART x 3(1 GSM Main UART,1 GSM Debug UART ,1 GNSS UART)
- ADC x 1
- RTC x 1
- Analog audio interface: 2 output, 1 input
- Digital audio interface(PCM interface ): 1
- GSM Antenna x 2

* Data Transimission
- Data Speed(kbps): 85.6kbps (DL) , 85.6kbps (UL)
- PBCCH Support Coding scheme USSD: CS 1,2,3,4

- Point to point MO and MT
- Text/PDU mode

* Voice
- Half rate(HR)
- Full rate(FR)
- Enhanced full rate (EFR)
- Half rate(HR)
- Full rate(FR)
> Audio Processing Mechanism
- Echo cancellation
- Echo supression
- Noice reduction

* Special Features
- Identifying Pseudo base-station
- Jamming Detection
- TTS Voice Broadcast
- Audio Record

* Application Fields
- Telematics
- Smart Healthcare
- Security Monitoring
- Wearable Devices
