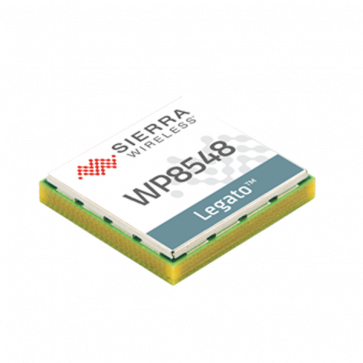

Sierra AirPrime WP8548 HSPA Embedded IoT Module

* 3G HSPA+/EDGE/GPRS/GSM Module


* CF3(common flexible form factor)


* Solder down or use snap-in-socket


* TCP+UDP+FTP+HTTP+HTTPS internet services


* ARM Cortex- A5 (550MHz) application core and dual QDSP6 (600MHz) telecom core

Sign up for price alert Sign up to get notified when this product is back in stock

Availability: Out of stock

$129.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

Sierra AirPrime WP8548 is an industrial grade LGA 239 pad AirPrime embedded module. Its wireless modem provides voice and data connectivity on HSPA, WCDMA, EDGE and GPRS networks. In addition to modem features, the AirPrime WP8548 also embeds several cores for maximum flexibility and security for embedded software execution including a telecom core that natively manages 2G/3G modem features and an application core dedicated to customer applications natively provided with Linux operating system. It provides an integrated device to cloud architecture enabling IoT developers to build a Linux based product on a single module and seamlessly send valuable user and product data to the cloud. Offering an application processor running the open source Legato platform, GNSS receiver and cellular modem with an ultra-low power domain, WP module reduces system complexity and gets users to market faster.

Sierra AirPrime WP8548 Specifications and features:

* Target Region: Global

* Air interface: 3G-HSPA+DC, 2G-GSM/GPRS/EDGE, GNSS

* 3G Bands: B1 (2100), B2 (1900), B5 (850), B6 (800), B8 (900)

* 2G Bands: GSM 850, E-GSM 900, DCS 1800, PCS 1900

* Peak data rate: DL 42 Mbps, UL 5.76 Mbps

* GNSS: GPS, Glonass

* Form factor: CF3 SMD LGA package, 22 x 23 x 4.35 mm

* Supply Voltage: 3.7 V nominal

* Operating Temperature: -40°C to +85°C

Control, Software and Features


* Embedded Linux/Legato application framework

* Control option: AT Commands

* Internet services: TCP, UDP, FTP, HTTP, SMTP, POP3, SSL

* Drivers: Android, Linux, Windows

* FOTA: Free and unlimited through AirVantage

* Cloud service: AirVantage Cloud for management, diagnostics and business data


Embedded application performance

* CPU: Cortex A5, 550 MHz

* User MIPS available: 860 MIPS

* Memory: 256 MB Flash, 128 MB RAM

* Interfaces
- 2x SIM interface: 1.8/3V
- 1x UART, 8 wire
- 1x UART, 4 wire
- 1x USB OTG 2.0 High Speed
- 1x HSIC
- 1x SPI
- 1x I2C
- 1x SDIO
- 12x GPIO
- 1x VGPIO
- 5x Interrupt
- 2x ADC
- 1x 19.2 MHz clock
- 1x 32.768 kHz clock
- 1x Battery In / Charging Out
- 1x Power On
- 1x Reset In
- 1x Reset Out
- 1x Safe Power Remove
- 1x Dead Reckoning Sync
- 1x Wireless Disable
- 1x Tx ON
- 1x LED driver
- 1x Wake on WWAN
- 1x Digital Audio, PCM/I2S
- 1x RF, Main
- 1x RF, GNSS
- 4x Antenna control
- Test points


* Benefits: More than a cellular modem, the AirPrime WP Series provides a secure device-to-cloud architecture enabling IoT developers to build a Linux-based product on a single module - reducing overall system complexity and time-to-market.
