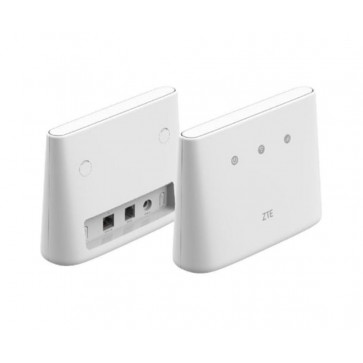

ZTE MF293N 4G LTE WiFi Router
* LTE Category 4
* LTE DL 150Mbps, UL 50Mbps
* Support up to 32 WiFi-enabled devices
* WiFi 802.11b/g/n, 2 x 2 MIMO, 2.4Ghz
* Two connectors for external antennas
Availability: In stock
ZTE MF293N is a new 4G LTE Cat4 mobile WiFi router which supports download speeds up to 150Mbps and upload speeds up to 50Mbps. Up to 32 wireless devices could connected with ZTE MF293N wireless router. It supports WiFi 802.11b/g/n 2x2 MIMO and there are two SMA connectors for external antennas.
ZTE MF293N 4G router Specifications:
* Product type: 4G WiFi router
* Category: LTE Cat4
* Platform: ZX297520V3E + RTL8192ES
* Supported Frequency Bands:
- FDD-LTE Bands: 1, 2, 3(4), 5, 7, 8, 20(12,13,17), 28
- TDD-LTE Bands: 38, (39), 40, 41
- DC-HSPA+/HSPA/UMTS Band: 1,2,(4), 5, 8
- EDGE/GPRS/GSM Quad Bands
(B2 and B39 interchange)
(B3 and B4 interchange)
* Peak data rate:
- FDD-LTE: DL/UL 150/50Mbps(Cat4)
- TDD-LTE: DL/UL 110+/11+Mbps(Cat4)
- HSPA+: DL/UL 21.6/5.76Mbps
* WiFi:
- 802.11 b/g/n
- 2.4Ghz, 2 x 2 MIMO, 300Mbps
- 32 users supported
* Dimensions: 164 x 124 x 51.5mm
* Interface:
- 1 x RJ45(FE, WAN/LAN)
- 1 x RJ11(FXS, CSFB/VoLTE/VoIP(customized))
- 1 x SIM Socket(4FF)
- 2 x SMA(external antenna)
- 1 x DC470(DC12V)
- Micro USB
* Other configuration:
- 3 LED: Power, WiFi network
- Button: WPS, Reset
* Features: Data service, WebUI, ZTE Link, FOTA, Main stream OS supported
---------------------------------------------------------------------------------------------------------------------
Some users of ZTE MF293N Router may need the external antenna to get better signal, we would recommend below the external antenna for ZTE MF293N 4G Router. We had tested the antenna and it works well with ZTE MF293N LTE Router:
http://www.4gltemall.com/4g-antenna-two-sma-connector.html
If you prefer 4G outdoor antenna to get better signal, you could try below the antenna:
http://www.4gltemall.com/4g-lte-outdoor-antenna-2-x-sma-connectors.html
