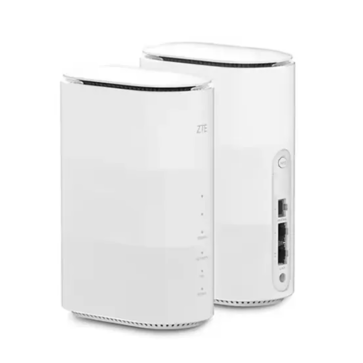

ZTE MC801A PRO 5G WiFi Router

Highlight Features:

5G NSA+SA Dual Mode
------------------------------------------------------------
Supports both NSA and SA dual-mode 5G networks with fastspeed, wide coverage and main global frequency bands.

Carrier Aggregation and ENDC Technology, High Speed and Wide Coverage High
------------------------------------------------------------
It supports advanced 5G NR network carrier aggregation (CA)technology,greatly improves spectrum utilization, bringshigher user data rate, lower delay, higher capacity, more reli-able network service and better performance. At the sametime, low-frequency ENDC technology is supported to im-prove the coverage and the signals in suburban, rural andremote areas are wider and farther. MC801A Pro truly realizesthe advantages of wide coverage and fast speed of 5G signalsand the users can enjoy a fast internet experience anytime andanywhere. At the same time, it supports 4G Cat16 1.0Gbps LTErate, which is also very fast.

High Speed Wi-Fi6, Peak Rate 3600Mbps
------------------------------------------------------------
MC801A Pro adopts the Wi-Fi6 standard, and the peak rate ofWi-Fi has reached 3600Mbps*, With the unique 4K QAM modu-lation technology and using the latest compatible mobilephone, the Wi-Fi forwarding rate can be greatly improved

5G Network Shared by Multiple People
------------------------------------------------------------
With one MC801A Pro, more than the whole family can enjoy5G network as it supports up to 64 Wi-Fi users access simulta-neously. And also the needs of enterprises are met by this feature

High Gain Antenna up to 12dBi
------------------------------------------------------------
Bya unique antenna design, the antenna gain is up to 12dBiwhich enhances the ability to penetrate walls and windowsyielding stronger signal and wider coverage. Compared withordinary products, the speed is increased by 15%, and 5G sig,nals can be well received when placed at anywhere.

5G and Wired Broadband Dual Network
------------------------------------------------------------
It supports both wireless and wired broadband Internetaccess, which can be freely selected. When one mode fails, itcan be seamlessly switched to the other to ensure the stabilityof the network.

ZTE MC801A Pro 5G WiFi CPE Specifications：

* Category: 5G Router

* Communication Standard: 3GPP Release 16

* Chipset: Qualcomm 5G SDX62 + WCN6856

* CPU: Cortex A7 up to 1.4GHz

* Supported networks:

- Network technology: 5G NR, 3GPP Rel 16 5G NR SA & NSA option 3X
- Network frequencies: 5G: N1/3/7/8/20/28/38/40/41/75/77/78
- Support 4G LTE Band: 1/3/4/5/7/8/20/28/32/38/40/41/42/43 and 3G WCDMA Band: 1/5/8

* Data rate speeds:
- 5G: DL: 3.8 Gbit/s and UL: 542 Mbit/s
- LTE Category 22 (DL: 2.4 Gbit/s and UL: 316 Mbit/s), 5CA, MIMO 4x4 for B1/3/7
- WCDMA: DC (up to 42Mbit/s)

* Modulation: DL 256QAM, UL 64QAM

* Wi-Fi: 802.11a/b/g/n/ac/ax(WiFi 6), dual-band, 4 x 4 MIMO

* WiFi 5GHz: up to 80MHz, 2 x 2 MIMO, up to 1.2Gb/s

* WiFi 2.4GHz: up to 40MHz, 2 x 2 MIMO, up to 575Mb/s

* WLAN encryption standards: WPA, WPA2, WPS

* Support up to 64 WiFi users simultaneously

* Functions: Blocklist, 3 SSIDs (2 Primary, 1 Guest)

* Interface:
- SIM card slot(NANO SIM) x 1
- Tel port(RJ11) x 1 (CSFB)
- LAN port * 2 (1 x WAN port)
- DC port x 1

* Administration console: Full access from a web browser 192.168.0.1

* Support Firewall and PP2P/L2TP

* Power supply: 12V / 4A

* Button: Power button, reset button

* Cellular Antenna Ports: 2 slots for external antenna with TS-9 connector(Buy ZTE MC801A PRO 5G external antenna)

* SIM Card size type: NANO SIM

* Support OS: Linux

* Other functions: MAC address filtering, Wi-Fi encryption authentication, VPN, IPv6 support, VoLTE, DMZ, SSID, Guest SSID, Port Forwarding, Watchdog Service, DHCP settings, network selection, APN settings etc.

* Dimension: 182 x 124 x 70 mm

* Package content:
- ZTE 5G Router MC801A PRO x 1
- 12V power adapter x 1
- Brief instruction
- LAN cable
