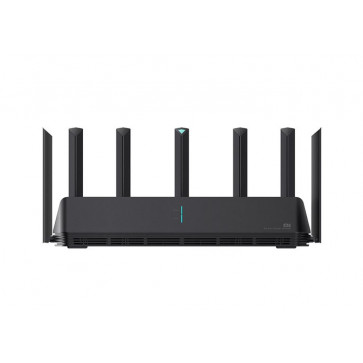

Xiaomi AX3600 WiFi 6 AIoT Router

Xiaomi AX3600 is a new WiFi 6 AIoT router equipped with six high-performance signal amplifiers: two external high-performance signal amplifiers (PA power amplifier + LNA low noise amplifier) in the 2.4GHz band and four external high-performance signal amplifiers in the 5GHz band.

Xiaomi AIoT router AX3600 adopts 7 external antennas, including 1xIoT equipment antenna, 2x2.4GHz antennas and 4x5GHz antennas. This design also ensures that the Xiaomi AIoT router AX3600 has stronger signal coverage capability. Xiaomi AIoT router AX3600 can not only provide a stable and high-speed network connection for mobile phones but also receive signals from more smart devices.

Xiaomi AIoT router AX3600 is equipped with Qualcomm IPQ8071A chip, 4-core A53 architecture, 1GHz clock frequency, and dual-core NPU network acceleration engine chip. In addition to the use of high-end hardware configuration, Xiaomi AIoT router AX3600 has also been upgraded at the technical level, Xiaomi AIoT router AX3600 supports OFDMA and MU-MIMO technology. Ensure that the Xiaomi AIoT router AX3600 runs efficiently and stably.

Xiaomi AX3600 WiFi 6 Router Highlights:

Support Wi-Fi 6 Connectivity
----------------------------------------
Mi AIoT Router AX3600 supports Wi-Fi 6 connectivity and provide speeds of up to 2976Mbps.

Qualcomm IPQ8071A Chipset
----------------------------------------
Mi AIoT Router AX3600 is powered by Qualcomm IPQ8071A chipset and paired with 512MB of RAM and 256MB of storage, offers up to 3Gigabit speed .

Seven High-performance Signal Amplifiers
----------------------------------------
Mi AIoT Router AX3600 has six-high performance external signal amplifiers and a dedicated AIoT smart antenna. One of the antennas is an IoT device antenna, two are 2.4GHz antennas and the remaining five are 5GHz antennas.

Xiaomi Mijia App
----------------------------------------
The Mi AIoT Router AX3600 works with the Mijia app and setting it up is easy. The device automatically detects IoT devices around you and allows you to set up a one-click configuration for easy connection.

Support WPA3 Encryption Protocol
----------------------------------------
The Mi AIoT Router AX3600 supports for the new WPA3 encryption protocol.

Xiaomi AX3600 AIoT Router Specifications:

Hardware Configuration
----------------------------------------
Processor: IPQ8071A 4-core A53 1GHz CPU

Network Engine: Dual-core 1.7GHz NPU

ROM: 256MB

RAM: 512MB

2.4G Wi-Fi: 2 × 2 (the highest support IEEE 802.11ax protocol, the theoretical maximum rate can reach 574Mbps)

5G Wi-Fi: 4 × 4 (the highest support IEEE 802.11ax protocol, the theoretical maximum rate can reach 2402Mbps)

Product Antenna: 6 external high-gain antennas + 1 external AIoT antenna

Product cooling: Natural heat dissipation

Interface:
- 1 x 10/100 / 1000M adaptive WAN port (Auto MDI / MDIX)
- 3 10/100 / 1000M adaptive LAN ports (Auto MDI / MDIX)

LED indicator: 7 (System indicator * 1, Internet indicator * 1, Network port light * 4, AIoT status light * 1)

System reset button: 1

Power input interface: 1

Protocol Standard: IEEE 802.11a / b / g / n / ac / ax, IEEE 802.3 / 3u / 3ab

Certification Standards: GB / T9254-2008; GB4943.1-2011

Warranty Information: 1 year warranty

Wireless Parameters
----------------------------------------
Dual frequency: 2.4GHz and 5GHz

Wireless channel:
- 2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
- 5GHz Channel: 36,40,44,48,149,153,157,161,165

Modulation
- 11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5 / 11Mbps)
- 11a / g: OFDM: BPSK (6 / 9Mbps), QPSK (12 / 18Mbps), 16QAM (24 / 36Mbps),64QAM (48 / 54Mbps)
- 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 ~ MCS15
- 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM. Rate set: MCS0 ~ MCS9 (support 4 streams)
- 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM.
Rate set: MCS0 ~ MCS11 (support 4 streams)

Software Parameters
----------------------------------------
Operating System: Based on OpenWRT deeply customized smart router operating system MiWiFi ROM

Wireless Security: WPA-PSK / WPA2-PSK / WPA3-SAE encryption, wireless access control (black and white list), SSID hiding, intelligent anti-rubbing network

Management application: Support Web, Android, iOS

Product Acessories
----------------------------------------
Instructions (including three packs of cards) x 1

Cable x 1

Product Power x 1 (12V / 2A)

Working Environment
----------------------------------------
Working temperature: 0-40 ℃

Working humidity: 10% -90% RH (non-condensing)

Storage temperature: -40-70 ℃

Storage humidity: 5% -90% RH (non-condensing)
