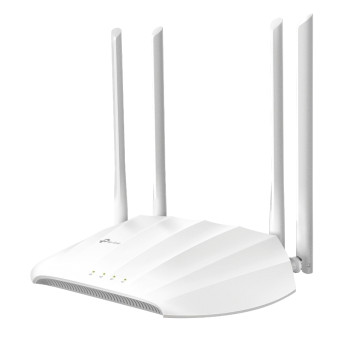

TP-Link TL-WA1201 AC1200 Wireless Access Point

TP-Link TL-WA1201 AC1200 Wireless Access Point Specifications:

HARDWARE FEATURES
----------------------------------------------------------------
Interface: 1× 10/100/1000 Mbps Ethernet Port
(Supports Passive PoE)
Button: Power On/Off Button, WPS Button, Reset Button
External Power Supply: 12V/1.5A
Wireless Standards: IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
Dimensions ( W x D x H ): 8.9 × 5.7 × 1.5 in(225×145.5×37 mm)
Antenna Type: 4 Fixed High Performance Antennas

WIRELESS FEATURES
----------------------------------------------------------------
Frequency: 2.4 GHz and 5 GHz
Signal Rate: 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
Reception Sensitivity:
5 GHz:
11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm

2.4 GHz:
11g 54Mbps: -78 dBm
11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm

Transmit Power: < 30dBm
Wireless Modes: Access Point, Range Extender, Client, Multi-SSID
Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control
Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
DHCP: Server, DHCP Client List
Quality of Service: WMM
Advanced Functions: Captive Portal

OTHERS
----------------------------------------------------------------
Certification: CE, FCC, RoHS
Package Contents:
Wireless Access Point TL-WA1201
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
PoE Power Injector

Environment：
Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Protocol Support： IPv4, IPv6
