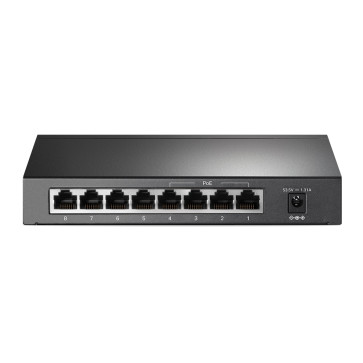

TP-Link TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE+

TP-Link TL-SG1008P Gigabit Switch Specifications:

HARDWARE FEATURES
----------------------------------------------------------------
* Interface
8× 10/100/1000 Mbps RJ45 Ports
AUTO Negotiation
AUTO MDI/MDIX

* Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)

* Fan Quantity: Fanless

* Physical Security Lock: Yes

* Power Supply: External power adapter(Output: 54VDC / 1.3A)

* PoE Ports (RJ45) Standard:
• Standard: 802.3 af/at compliant
• PoE Ports: ports 1–4
• Power budget for all PoE ports: 64 W

* Dimensions ( W x D x H ): 6.7 × 3.9 × 1.1 in(171×98×27 mm)

* Max Power Consumption：
• 5.4 W (with no PD connected)
• 75 W (with 64W PD connected)

* Max Heat Dissipation:
• 18.4 BTU/h (with no PD connected)
• 225.8 BTU/h (with 64 W PD connected)

PERFORMANCE
----------------------------------------------------------------
* Switching Capacity: 16 Gbps

* Packet Forwarding Rate: 11.9Mpps

* MAC Address Table: 4K

* Packet Buffer Memory: 1.5Mb

* Jumbo Frame: 16 KB

SOFTWARE FEATURES
----------------------------------------------------------------
* Advanced Functions
• Compatible With IEEE 802.3af/at Compliant PDs
• IGMP Snooping
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control
• 802.1p/DSCP QoS

* Transfer Method: Store and Forward

OTHERS
----------------------------------------------------------------
* Certification: CE, FCC, RoHS

* Package Contents
• TL-SG1008P
• Power Adapter
• Installation Guide

* System Requirements: Microsoft® Windows® for optional management utility

* Environment
• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
