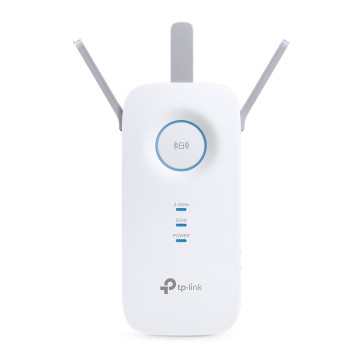

TP-Link RE550 AC1900 Wi-Fi Range Extender

Highlight Features:

* Maximum Coverage - Extend Wi-Fi coverage by up to 1,115 m2（12,000sq. ft）

* AC1900 Dual Band Wi-Fi - Simultaneous 600Mbps on 2.4GHz + 1300Mbps on 5GHz

* Three Antennas - Three adjustable external antennas provide optimal Wi-Fi coverage and reliable connections

* Gigabit Ethernet port - Act as a wireless adapter to connect a wired device to your network at Gigabit speed

* Intelligent Signal Light - Help to find the best location for optimal Wi-Fi coverage by showing the signal strength

* AP Mode - Create a new Wi-Fi access point to enhance your wired network with Wi-Fi capability

* TP-Link Tether App - Easily access and manage your network using any iOS or Android mobile device

* Ultimate Compatibility - Extend the range of any Wi-Fi router or wireless access point

* EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage

TP-Link RE550 AC1900 Wi-Fi Range Extender Specifications:

* Ports: 1 Gigabit Ethernet Port

* Button: WPS Button, Reset Button, LED Button, Power Button

* Input Power: 100-240V~50/60Hz

* Power Consumption: 10W(max power consumption)

* Dimensions ( W x D x H ): 6.4 x 3.0 x 2.6 in. (163 x 76.4 x 66.5mm)

* Antenna: 3 Internal Antennas

* Wireless Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

* Frequency: 2.4GHz and 5GHz

* Signal Rate: 600Mpbs at 2.4GHz, 1300Mbps at 5GHz

* Working Modes: Range Extender/Access Point

* Reception Sensitivity:
5GHz：
11a 6Mbps:-93dBm
11a 54Mbps: -76dBm
11ac HT20 mcs8: -68dBm
11ac HT40 mcs9: -64dBm
11ac HT80 mcs9: -61dBm

2.4GHz:
11g 54Mbps: -77dBm
11n HT20 mcs7: -73dBm
11n HT40 mcs7: -70dBm

* Wireless Functions
Enable/Disable Wireless Radio
DFS (the latest firmware and hardware version is required)
Access Control
LED Control
Power Schedule
Wi-Fi Coverage

* Wireless Security: 64/128-bit WEP, WPA-PSK / WPA2-PSK

* Transmission Power: CE: 2.4G<20dBm, 5G<23dBm

* Certification: CE, FCC, RoHS

* Package Contents
AC1900 Wi-Fi Range Extender RE550
Quick Installation Guide

* System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.

* Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
