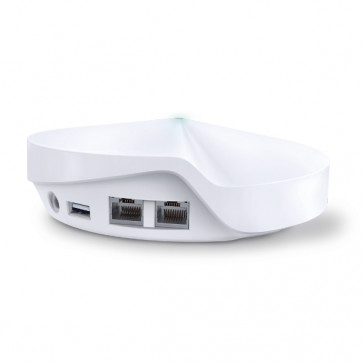

TP-Link Deco M9 Plus AC2200 Smart Home Mesh WiFi System

Highlight Features:

* Whole Home Coverage: Deco M9 Plus (3-pack) uses a system of units to achieve seamless whole-home WiFi coverage up to 6,500 sq. ft. — eliminate weak signal areas once and for all!*

* Tri-Band Speeds: Reach speeds up to 2200 Mbps with the tri-band Deco M9 Plus.*

* TP-Link Mesh Technology: With advanced Deco Mesh Technology, units work together to form one unified whole-home network with the same network name. Deco automatically chooses the best connection for your device as you move throughout your home.‡

* Dynamic Backhaul: A dynamic backhaul up to 1.5 Gbps ensures you have fast, stable connections throughout your home.***

* Built-in Smart Hub: Deco M9 Plus acts as a hub for your wireless and smart home devices. Adjust settings and create interactions from one app.

* Connect More Devices: Deco can handle traffic from even the busiest of networks, providing lag-free WiFi connection for over 100 devices.*

* TP-Link HomeCareTM: A free lifetime subscription to TP-Link HomeCare protects your family with personalized security features, including Parental Controls, built-in Antivirus and Quality of Service (QoS).**

* Easy Setup: Setup is easier than ever — The Deco app will walk you through setup step by step.

TP-Link Deco M9 Plus Mesh WiFi Gateway Specifications:

* Standards: Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
Bluetooth 4.2
ZigBee HA 1.2

* WiFi Speeds: AC2200
5 GHz: 867 Mbps (802.11ac)
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 400 Mbps (802.11n)

* WiFi Range:
4-6+ Bedroom Houses (3-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

8× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

* WiFi Capacity: Medium
Tri-Band
Distribute devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

* Working Modes: Router Mode, Access Point Mode

* Network Security
SPI Firewall
Access Control

HomeShield Security
--------------------------
Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log

* Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

* WiFi Encryption
WPA-Personal
WPA2-Personal

* Ethernet Ports:
2× Gigabit Ports

*Per Deco Unit
Supports WAN/LAN auto-sensing

* Buttons: Reset Button

* Protocols
IPv4
IPv6

* Parental Controls
HomeCare™ Parental Controls
Custom Profiles
Content Filtering
URL FIltering
Time Limit
Time Schedule (Bed Time)
Log Insight
Usage Monitor
Monthly Reports

* WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

* Quality of Service: HomeCare™ QoS
QoS by Device
QoS by Application

* Cloud Service
OTA Firmware Upgrade
TP-Link ID
DDNS

* NAT Forwarding
Port Forwarding
UPnP

* IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

* DHCP
Address Reservation
DHCP Client List
Server

* DDNS: TP-Link

* Management: Deco App

* WiFi Transmission Power
CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm

* Dimensions (W×D×H): 5.7 × 5.7 × 1.8 in(144 × 144 × 46 mm)

* Package Contents
Deco M9 Plus (3-pack)
3 Deco M9 Plus Units
1 RJ45 Ethernet Cable
3 Power Adapters
1 Quick Installation Guide

Deco M9 Plus (2-pack)
2 Deco M9 Plus Units
1 RJ45 Ethernet Cable
2 Power Adapters
1 Quick Installation Guide

Deco M9 Plus (1-pack)
1 Deco M9 Plus Unit
1 RJ45 Ethernet Cable
1 Power Adapter
1 Quick Installation Guide

* System Requirements
Android 5.0 or later
iOS 9.0 or later
*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.

* Certification: CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS

* Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
