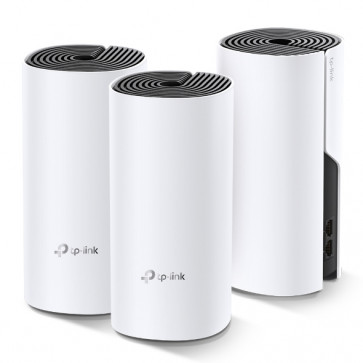

TP-Link Deco M4 AC1200 Deco Whole Home Mesh WiFi System

Highlight features:

* Whole Home Coverage: Deco M4 (3-pack) uses a system of units to achieve seamless whole-home WiFi coverage up to 5,500 sq. ft. — eliminate weak signal areas once and for all!*

* TP-Link Mesh Technology: With advanced Deco Mesh Technology, units work together to form a unified network with a single network name. Devices automatically switch between Decos as you move through your home for the fastest possible speeds**

* Fast Dual-Band WiFi: Deco M4 provides fast and stable connections with speeds of up to 1167 Mbps and works with major internet service provider (ISP) and modem.*

* Connect More Devices: Deco can handle traffic from even the busiest of networks, providing lag-free connections for up to 100 devices.*

* Parental Controls: Limit online time and block inappropriate websites according to unique profiles created for each family member.

* Easy Setup: Setup is easier than ever with the Deco app there to walk you through every step.

TP-Link Deco M4 Mesh WiFi Gateway Specifications:

* Standards: Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

* WiFi Speeds: AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 300 Mbps (802.11n)

* WiFi Range:
3-5 Bedroom Houses (3-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

2× Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

* WiFi Capacity: Medium
Medium
Dual-Band
Distribute devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

* Working Modes: Router Mode, Access Point Mode

* Network Security
SPI Firewall
Access Control

* Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

* WiFi Encryption
WPA-Personal
WPA2-Personal

* Ethernet Ports:
2× Gigabit Ports

*Per Deco Unit
Supports WAN/LAN auto-sensing

* Buttons: Reset Button

* Protocols
IPv4
IPv6

* Parental Controls
URL Filtering
Time Controls

* WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP

* Quality of Service:
QoS by Device

* Cloud Service
OTA Firmware Upgrade
TP-Link ID
DDNS

* NAT Forwarding
Port Forwarding
UPnP

* IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

* DHCP
Address Reservation
DHCP Client List
Server

* DDNS: TP-Link

* Management: Deco App

* WiFi Transmission Power
CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
FCC:
<30 dBm

* Dimensions (W×D×H): 3.6 × 3.6 × 7.5 in(90.7 × 90.7 × 190 mm)

* Package Contents
Deco M4 (3-pack)
3 Deco M4R Units
1 RJ45 Ethernet Cable
3 Power Adapters
1 Quick Installation Guide

Deco M4 (2-pack)
2 Deco M4R Units
1 RJ45 Ethernet Cable
2 Power Adapters
1 Quick Installation Guide

Deco M4 (1-pack)
1 Deco M4R Unit
1 RJ45 Ethernet Cable
1 Power Adapter
1 Quick Installation Guide

* System Requirements
Android 5.0 or later
iOS 9.0 or later
*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.

* Certification: CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS

* Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
