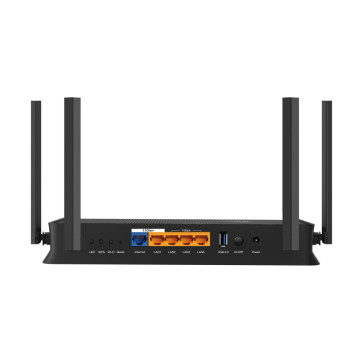

TP-Link Archer BE230 BE3600 Dual-Band Wi-Fi 7 Router

TP-Link Archer BE230 Wi-Fi 7 Router Highlight Features:

* 3.6 Gbps Dual-Band WiFi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.†

* 2× 2.5G Ports: 1× 2.5 Gbps WAN port, 1× 2.5 Gbps LAN port and 3× 1 Gbps LAN ports offer high-speed data transmissions.

* Maximized Coverage: 4× external antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.

* EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.*

* Easy Setup and Use: Network management has never been easier with the Tether app.

* TP-Link HomeShield: Enhanced security defends against the latest cyber threats.**

* Great Compatibility: Supports all Wi-Fi generations and devices**and all internet providers.

TP-Link Archer BE230 BE3600 Dual-Band Wi-Fi 7 Router Specifications:

WiFi Speeds: BE3600
---------------------------------------------
• 5 GHz: 2882 Mbps (802.11be)
• 2.4 GHz: 688 Mbps (802.11be)

WiFi Range: 3 Bedroom Houses
---------------------------------------------
4× External Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity
---------------------------------------------
High
Dual-Band
Allocate devices to different bands for optimal performance

2×2 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

4 Streams
Connect your devices to more bandwidth

Advanced Features
---------------------------------------------
• Multi-Link Operation (MLO)
• 4K-QAM
• Multi-RUs
• EasyMesh-Compatible
• Works with Alexa and Google Assistant
• IoT Network

Wireless Mode
---------------------------------------------
• Router Mode
• Access Point Mode

Network Security
---------------------------------------------
• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway

• HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner

Guest Network
---------------------------------------------
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network

VPN Server
---------------------------------------------
• OpenVPN Server
• PPTP VPN Server
• L2TP VPN Server
• WireGuard VPN Server

VPN Client
---------------------------------------------
• Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
• WireGuard VPN Client

WiFi Encryption
---------------------------------------------
• WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)

Ethernet Ports
---------------------------------------------
• 1× 2.5 Gbps WAN
• 1× 2.5 Gbps LAN
• 3× 1 Gbps LAN

USB Support
---------------------------------------------
1× USB 3.0

• Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

• Supported Functions:
FTP Server
Media Server
Samba Server

Buttons
---------------------------------------------
• Power On/Off Button
• Wi-Fi On/Off Button
• LED Button
• WPS Button
• Reset Button

Power
---------------------------------------------
12 V ⎓ 2 A (US)
12 V ⎓ 1.5 A (EU)

Protocol
---------------------------------------------
• IPv4
• IPv6

EasyMesh
---------------------------------------------
Compatible with EasyMesh

Parental Controls
---------------------------------------------
HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports

WAN Type
---------------------------------------------
• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP

Quality of Service: QoS by Device

Cloud Service
---------------------------------------------
• Auto Firmware Upgrade
• TP-Link ID
• DDNS

NAT Forwarding
---------------------------------------------
• Port Forwarding
• Port Triggering
• DMZ
• UPnP

IPTV
---------------------------------------------
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN

DHCP
---------------------------------------------
• Address Reservation
• DHCP Client List
• Server

DDNS
---------------------------------------------
• TP-Link
• NO-IP
• DynDNS

Management Features
---------------------------------------------
• Tether App
• Webpage

System Requirements
---------------------------------------------
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications
---------------------------------------------
CE, FCC, RoHS

Environment
---------------------------------------------
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Operating Humidity: 10%~90% non-condensing
