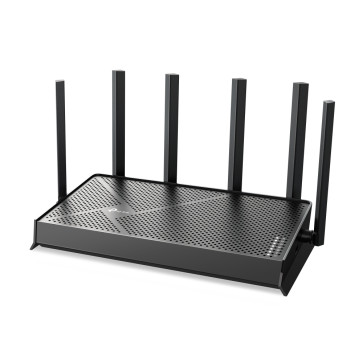

TP-Link Archer BE600 BE9700 Tri-Band Wi-Fi 7 Router

TP-Link Archer BE600 Wi-Fi 7 Router Highlight Features:

* 9.7 Gbps Tri-Band Wi-Fi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.

* Multi-Link Operation (MLO): Transmits data with Wi-Fi 7 clients across multiple bands simultaneously to increase throughput, reduce latency, and improve reliability for various networking behaviors.‡

* 10G Wired Connection: 1× 10 Gbps WAN/LAN port, 1× 2.5 Gbps WAN/LAN port and 3× 2.5 Gbps LAN ports offer ultra-fast data transmissions.§

* Maximised Coverage: 6× external antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.

* EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh Wi-Fi, preventing drops and lag when moving between signals.△

* TP-Link HomeShield: Enhanced security defends against the latest cyber threats.*

* Great Compatibility: Supports all Wi-Fi generations and devices and all internet providers.

TP-Link Archer BE600 BE9700 Tri-Band Wi-Fi 7 Router Specifications:

WiFi Speeds BE9700
------------------------------------------
• 6 GHz: 5765 Mbps (802.11be)
• 5 GHz: 2882 Mbps (802.11be)
• 2.4 GHz: 1032 Mbps (802.11be)

WiFi Range:
------------------------------------------
3 Bedroom Houses
6× External Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity
------------------------------------------
High
Tri-Band
Allocate devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

6 Streams
Connect your devices to more bandwidth

Advanced Features
------------------------------------------
• Multi-Link Operation (MLO)
• 4K-QAM
• Multi-RUs
• EasyMesh-Compatible
• Works with Alexa and Google Assistant
• IoT Network

Wireless Mode
------------------------------------------
• Router Mode
• Access Point Mode

SECURITY

Network Security
------------------------------------------
• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway

• HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner

Guest Network
------------------------------------------
• 1× 6 GHz Guest Network
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network

VPN Server
------------------------------------------
• OpenVPN Server
• PPTP VPN Server
• L2TP VPN Server
• WireGuard VPN Server

VPN Client
------------------------------------------
• Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
• WireGuard VPN Client

WiFi Encryption
------------------------------------------
• WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)

HARDWARE

Ethernet Ports
------------------------------------------
• 1× 10 Gbps WAN/LAN
• 1× 2.5 Gbps WAN/LAN
• 3× 2.5 Gbps LAN

USB Support
------------------------------------------
1× USB 3.0

• Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

• Supported Functions:
FTP Server
Media Server
Samba Server

Buttons • Power Button
• Wi-Fi/LED Button
• WPS Button
• Reset Button

Power: 12 V ⎓ 2.5 A

Protocol
------------------------------------------
• IPv4
• IPv6

WAN Type
------------------------------------------
• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP

Quality of Service: QoS by Device

Cloud Service
------------------------------------------
• Auto Firmware Upgrade
• TP-Link ID
• DDNS

NAT Forwarding
------------------------------------------
• Port Forwarding
• Port Triggering
• DMZ
• UPnP

IPTV
------------------------------------------
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN

DHCP
------------------------------------------
• Address Reservation
• DHCP Client List
• Server

DDNS
------------------------------------------
• TP-Link
• NO-IP
• DynDNS

Management Features
------------------------------------------
• Tether App
• Webpage

System Requirements
------------------------------------------
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications: CE, FCC, RoHS

Environment
------------------------------------------
• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Operating Humidity: 10%~90% non-condensing
