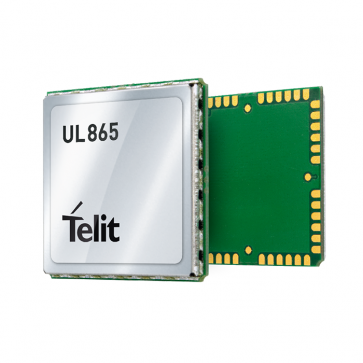

Telit UL865-EUR 3G UMTS Module

* Telit 3G UMTS Module

* Belongs to Telit UL865 family

* Form Type: VQFN packaging

* Target market: EMEA/APAC

* HSDPA up 7.2Mbps/HSUPA up to 5.76Mbps

* Support 3G UMTS/HSPA Band: 900/2100MHz

Sign up for price alert

Availability: In stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!


Telit UL865-EUR is a 3G module in the xL865 family. It is based on the latest Intel chipset to protect the developer's design investments as a long term availability solution. The UL865-EUR features VQFN packaging that is fully pad-level compatible with its 2G companion, the GL865-Dual V3.

Key benefits:

* Simple drop-in migration and technology upgrade path to 3G high-speed performance for designs currently using the GL865-DUAL V3

* Ideal for fleet management and track-and-tracing application with easy to follow reference designs for pairing with Telit GPS and GPS/GLONASS receivers

* Internet application friendly with integrated TCP/IP and UDP/IP stacks

* Voice-capable for applications requiring digital (DVI) interface

* Complete SMT platform for m2m solutions running the customer application inside the module with embedded Python Script Interpreter

* Over-the-Air firmware update by means Premium FOTA management

Telit UL865-EUR module Specifications:

* Belongs to Telit xL865 family

* Form Type: VQFN packaging

* Target market: EMEA/APAC

* HSDPA up 7.2Mbps/HSUPA up to 5.76Mbps

* WCDMA up to 384kbps downlink/uplink

* Support 3G UMTS/HSPA Band: 900/2100MHz

* GSM/GPRS/EDGE Band: 900/1800MHz

* Voice feature: Yes

* SIM access profile

* 3GPP release 7 compliant

* Control via AT commands according to 3GPP TS27.005, 27.007 and customised Telit AT commands

* USB and UART interfaces

* Built in UDP/TCP/IP stack

* Serial port multiplexer 3GPP TS27.010

* Built in FTP client

* Built in SMTP stack

* Embedded TCP/IP stack with server and client functions

* Storage and Operating Temperature Range: –40°C ~ +85°C

* Nominal Supply Voltage: 3.8V

* Operating Voltage Range 3.4 ~ 4.2V

* Extended Operating Voltage Range: 3.1 ~ 4.5V

* Dimensions: 24.4 x 24.4 x 2.6 mm

* Weight: 10g

* Interfaces

- 8 x I/O ports maximum including multifunctional I/Os (1.8V logic level)
- USB 2.0 HS
- 1.8V / 3V SIM interface
- 2 x A/D plus 1 D/A converters

* Audio
- Telephone, emergency call
- HR, FR, EFR, AMR for GSM and AMR for WCDMA voice codec
- Spatial Noise Suppression
- Multiple audio profiles pre-programmed and fully configurable

- Point to point mobile originated and mobile terminated SMS
- Concatenated SMS supported
- SMS cell broadcast
- Text and PDU mode
- SMS over GPRS

* GSM Supplementary Services
- Call forwarding
- Call barring
- Call waiting & call hold
- Advice of charge
- Calling line identification presentation [CLIP]
- Calling line identification restriction [CLIR]
- Unstructured supplementary services mobile originated data [USSD]
- Closed user group

* Additional features
- SIM phonebook
- Fixed Dialling Number (FDN)
- Call control & status indication
- SIM phonebook
- Character management (IRA, UCS2, GSM)
- USIM 3GPP Rel.7
- Real Time Clock
- Automatic answer
- Alarm management
- Embedded TCP/IP stack, including TCP, IP, UDP, and FTP protocols
- CSD for Video Telephony support

* Approvals
- Fully type approved confirming with RED directive
- AT&T
- RoHS and REACH

Telit UL865-EUR is designed and developed for applications such as:

* Point-of-Sales (POS) terminals

* mHealth Monitoring

* Security alarms with cameras

* Battery powered devices

* Telemetry

* Telematics, including Mapping and Infotainment

* Handheld scanners and logistics devices
