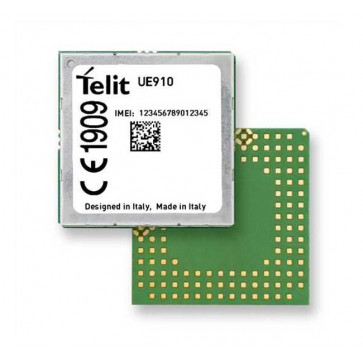

Telit UE910-EUD 3G UMTS Module
* Belongs to Telit UE910 family
* Form Type: 144 LGA
* Target market: EMEA/APAC
* HSDPA up 7.2Mbps/HSUPA up to 5.76Mbps
* Support 3G UMTS/HSPA Band: 900/2100MHz
Availability: In stock
Product Downloads
Telit UE910-EUD is a 3G dual-band UMTS/HSDPA module which also supports GSM/GPRS/EDGE band. Telit UE910-EUD has a Land-Grid-Array (LGA) package with 144 pads and could support peak download speed up to 7.2Mbps and upload speed up to 5.76Mbps.
Telit UE910-EUD module Specifications:
* Belongs to Telit UE910 family
* Form Type: 144 LGA
* Target market: EMEA/APAC
* HSDPA up 7.2Mbps/HSUPA up to 5.76Mbps
* WCDMA up to 384kbps downlink/uplink
* Support 3G UMTS/HSPA Band: 900/2100MHz
* GSM/GPRS/EDGE Band: 900/1800MHz
* Asynchronous non-transparent CSD up to 9.6kbps
* Voice feature: No
* DTM (Dual Transfer Mode)
* CPC (DRX/DTX) (Continuous Packet Connectivity)
* DARP
* Control via AT commands according to 3GPP TS27.005, 27.007 and Telit customized AT commands
* Serial port multiplexer 3GPP TS27.010
* SIM application Tool Kits 3GPP TS 51.014
* Storage and Operating Temperature Range: –40°C ~ +85°C
* Nominal Supply Voltage: 3.8V
* Operating Voltage Range 3.4 ~ 4.2V
* Extended Operating Voltage Range: 3.1 ~ 4.5V
* Dimensions: 28.2mm x 28.2mm x 2.2mm
* Weight: 10g
* Interfaces
- 10 general I/O ports maximum including multi-functional I/Os
- I2S for digital audio interface
- Analog audio (balanced)
- USB 2.0 HS
- 1 UART
- 1 Auxiliary serial port (RX/TX only)
- SPI
- 1 I2C
- 1.8V/3V SIM interface
* Audio
- Telephone, emergency call
- HR, FR, EFR, AMR for GSM and AMR for WCDMA voice codec
- Spatial Noise Suppression
- Multiple audio profiles pre-programmed and fully configurable
- DTMF
* SMS
- Point to point mobile originated and mobile terminated SMS
- Concatenated SMS supported
- SMS cell broadcast
- Text and PDU mode
- SMS over GPRS
* GSM Supplementary Services
- Call forwarding
- Call barring
- Call waiting & call hold
- Advice of charge
- Calling line identification presentation [CLIP]
- Calling line identification restriction [CLIR]
- Unstructured supplementary services mobile originated data [USSD]
- Closed user group
* Approvals
- Fully type approved confirming with RED directive
- CE, GCF
- FCC, IC, PTCRB,
- RoHS (all versions)
Telit UE910-EUD is designed and developed for applications such as:
* Telemetry
* Telematics
* Security alarms
* AMR (automated meter reading)
* Low-cost 3G applications
* High-bandwidth applications
