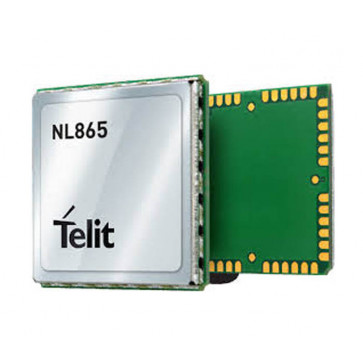

Telit NL865B1-E1

* Telit LTE Cat NB-IoT Module

* Support Dual LTE band B8/B20

* Half Duplex FDD

* LTE UE Category NB1

* 3GPP Rel. 13 compliant

* Data Rate: DL 250Kbps, UL 20Kbps

Sign up for price alert

Availability: In stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!


Telit NL865B1-E1 is new LTE Category NB-IoT module in the widely deployed Telit xL854 product family. Specified in the Release 13 of the 3GPP standard, LTE Cat NB1 is specifically tailored for IoT applications, offering optimized power consumption and enhanced coverage. In addition, with its square24.4 x 24.4 mm VQFN footprint, Telit NL865B1-E1 is designed for size sensitive applications.

Telit NL865B1 cellular module helps increase the addressable market for LTE technology to include a broad range of new applications and use cases best served with lower maximum data rate, ultra-low power, reduced complexity and cost. Some examples are smart metering, smart parking, smart agriculture, waste collection, industrial sensors, healthcare monitors, home automation, and many more low data rate IoT devices. The Telit NL865B1-E1 cellular module is offered in a dual-band con-figuration for deployment in the European and Chinese NB-IoT networks, either in in-band, guard-band or standalone mode; additional regional variants will follow. It is highly recommended for new designs, but also in particular as a migration path for existing GPRS devices, both new and updated designs benefit from a significant extension in lifecycle with LTE Cat NB1. Telit NL865B1-E1 module supports embedded SIM chip as a mounting option, making it the ideal solution for durable and rugged designs, and reducing BOM cost and size on the customer's application.

Telit NL865B1-E1 Key Benefit:

* Design once and deploy globally, thanks to the NL865 form factor family

* Compact VQFN package is ideally suited for low profile integrated solutions, limited real estate application boards, reducing cost in high-volume applications, as well as saving space and weight in portable devices

* Perfect platform for regional IoT applications such as smart metering, security & surveillance, point of sales, health monitoring, fleet management, asset tracking and wearable devices

* LTE UE Category NB1 compliant to the latest 3GPP Release 13 enhanced Machine-Type Communication (eMTC), specifically designed for IoT use cases, offering minimum power consumption and extended coverage

Telit NL865B1-E1 Module Specifications:

* LTE Cat NB-IoT Module

* Dual LTE band B8/B20

* Single Rx

* Half Duplex FDD

* LTE UE Category NB1

* 3GPP Rel. 13 compliant

* 3GPP Rel. 12 Power Saving Mode (PSM)

* 3GPP Rel. 13 Extended Discontinuous Reception (eDRX)

* 3GPP Rel. 13 Extended coverage

* Control via AT commands according to 3GPP TS27.005, 27.007 and customized AT commands

* Embedded UDP/IP stack

* Data rates: Uplink up to 20 kbps (single-tone), Downlink up to 250 kbps

* Interfaces
- I2C - for future release
- 1.8 V SIM interface
- Optional embedded SIM chip

* Compact dimensions 24.4 x 24.4 x 2.6 mm

* Extended temperature range: -40 to +85 °C

* Supply Voltage: Nominal 3.8VDC

* Approvals: RED (Europe), CCC (China), GCF
