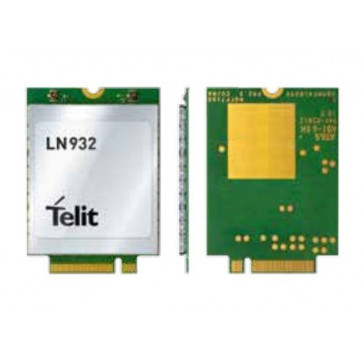

Telit LN932 LTE Cat.6 M.2 Module
- * Telit LTE Cat.6 Module
- * LTE DL 300Mbps, UL 50Mbps
- * HSPA+ DL 42Mbps, UL 5.76Mbps
- * GPS, A-GPS, GLONASS location service
- * Target region is North American and Europe
Availability: In stock
Regular Price: $179.00
Special Price $129.00
Telit LN932 is an LTE Cat.6 Module for North America, Europe market and roaming in Asia Pacific market in M.2 form factor. It could achieve download speed up to 300Mbps and upload speed to 50Mbps through the support of 3GPP release 10 LTE Carrier Aggregation. There are two variants of the LN932 M.2 (LN932 and LN932-AP) LTE Advanced data-card to support the various RF frequency bands and band combinations deployed worldwide.
Telit LN932 module Technical Specifications:
* LTE Category 6 embedded module
* Chipset:
* Support LTE B1, B2, B3, B4, B5, B7, B8, B9, B13, B17, B18, B19, B20, B25, B26, B29, B38, B41
* Carrier Aggregation: FDD DL 2CA, 40MHz
- Inter-band:
> Band 1 plus one from bands 5/8/18/19/26
> Band 2 plus one from band 4/5/13/17/29
> Band 3 plus one from band 5/8/19/20/26
> Band 4 plus one from band 5/13/17/29
> Band 7 plus one from band 20/3
- Intra Band: Band 4
* Support 3G B1, B2, B4, B5, B6, B8
* Support 2G network: B2, B3, B5, B8
* LTE FDD Download speed up to 300Mbps, upload speed to 50Mbps
* HSPA+ Download speed up to 42Mbps, upload speed to 5.7Mbps
* TD-HSPA: DL 2.8Mbps, UL 2.2Mbps
* Operating temperature: -10 °C to +55 °
* Application Interface: MBIM, C-AT/NCM
* USB: USB 3.0 and SSIC
* Antenna:
- Diversity
- MIMO
- Main, GNSS/AUX
- 4 GPO pins
* Tools: Firmware Switching, Noice Profiling, GNSS tools, Tracking, Debugging
* OS Support: Win 7, Win 8, Win 8.1, Linux
* Location services: GPS, A-GPS, GLONASS
* Certifications: Certifications UL/NCC/CCC/FCC/PTCRB/CE/GCF
* Operator IOT target:
- NA: AT&T, Verizon, T-Mobile US, Sprint
- EMEA: Vodafone, Telefonica, Orange
* Intel Platform features: Ack (Adaptive Clocking), SS (Selective Suspend), LPM (USB Low Power Mode), DTPF (Dynamic TX Power and Thermal Framework), WOd (Wifi Offload)
