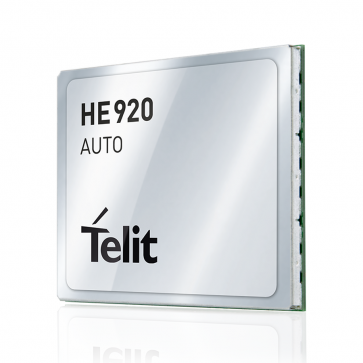

Telit HE920-EU 3G HSPA Module

* Telit 3G UMTS Module


* Form factor: LGA


* 3G UMTS/HSPA bands 850/900/2100MHz


* HSDPA 14.4 Mbps/HSUPA 5.76Mbps


* Quad band GSM/GPRS/EDGE

Sign up for price alert Sign up to get notified when this product is back in stock

Availability: Out of stock

$109.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

Telit HE920-EU is a 3.5G wireless data module offering HSPA connectivity with download speeds up to 14.4 Mbps, upload speeds up to 5.76 Mbps and manufactured under ISO TS16949. Designed for use in the most demanding of automotive applications, the HE920-EU also offers ruggedized LGA packaging with an increased robustness and cost reducing mating solution.

The HE920-EU Module is also fully backward compatible to existing EDGE and GSM/GPRS networks through integrated quad-band radios.

Telit HE920-EU is also available with embedded GPS/GLONASS receiver and Antenna Diversity. The extensive interface set, which includes analog and digital audio, UARTs, USB, PCM and user-definable GPIOs, provides ease of integration of peripherals and actuators. The HE920-EU is also compliant with eCall EU Directive.


Telit HE920-EU Module Specifications:

* 3G UMTS Module

* Form factor: LGA

* 3G UMTS/HSPA bands 850/900/2100MHz

* GSM/GPRS protocol stack 3GPP Release 6 compliant

* HSDPA 14.4 Mbps/HSUPA 5.76Mbps

* Dimensions 34 x 40 x 2.8mm

* Quad-band GSM/GPRS/EDGE

* GPRS/EDGE Class 33

* Manufactured under TS16949

* Optional GPS/GLONASS receiver

* RX Diversity

* Control via AT commands according to 3GPP TS27.005, 27.007 and Telit customized

* AT commands

* Serial port multiplexer 3GPP TS27.010

* Interfaces
- 198-pad LGA interface
- 12 general I/O ports maximum including multi-functional I/Os
- Status LED output
- 2x Analog audio
- 1x Digital audio (PCM)
- 2 A/D converters
- 1 D/A converter (PWM output)
- UART.
- Reserved two wires CMOS UART for debugging
- USB 2.0 Hi-Speed, baud rate up to 480Mbps
- 1.8V/3V SIM interface


* GPS Receiver (optional)
- gpsOne Gen8
- Sensitivity : -160 dBm
- Time To First Fix(Hot start): 1sec
- Assisted-GNSS Support


* Audio
- Telephony, emergency call
- HR, FR, EFR, AMR for GSM and AMR for WCDMA voice codec
- DTMF

* SMS
- Point to point mobile originated and mobile terminated SMS
- SMS cell broadcast
- Text and PDU mode
- SMS over GPRS


* Data transmission
- HSPA: D/L up to 14.4Mbps, U/L up to 5.76Mbps
- UMTS: D/L up to 384Kbps, U/L up to 384Kbps
- EDGE: D/L up to 236.8Kbps, U/L up to 236.8Kbps
- GPRS: D/L up to 85.6Kbps, U/L up to 85.6Kbps


* Approvals
- Fully type approved confirming with R&TTE directive
- CE, GCF
- RoHS
