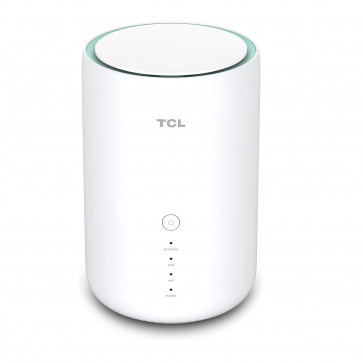

TCL Linkhub HH130 4G LTE Cat13 Wireless Router

TCL Linkhub HH130 is a new 4G LTE Cat13 WiFi router which can achieve download speeds up to 600Mbps and upload speeds up to 150Mbps. Up to 64 devices can connect with the TCL HH130 linkhub home station to access the Internet. It has two RJ45 LAN ports(one for WAN/LAN), one telephone port and one RJ11 power plug.

TCL Linkhub HH130 Home Router Specifications:

* Product type: 4G WiFi Router

* Category: LTE Cat13

* 4G LTE Frequency Bands: B1/3/5/8/20/28

* External interface
- 1 x RJ45 WAN/LAN Gigabit
- 1 x RJ45 LAN Gigabit
- 1x DC/AC power port
- 1x 4FF SIM slot
- 1x Reset Hole
- 2X TS9 external anntenna connector
- 1x RJ11(for HH130V1 only)

* LED Indicators: Power, Wi-Fi, Network, Signal

* Connectivity
- Wi-Fi Users Amount: 64(32+32)
- TS9: 2(B1/3/5/8/20/28)
- CA: DL 3CA&2CA 256QAM, UL 2CA 64QAM

* WLAN
- Wi-Fi Frequency Band: Dual band 2.4GHz and 5GHz (DBDC), MIMO 2X2
- Wi-Fi Standard: 802.11 a/b/g/n/ac
- Data Transmission Speed: 802.11ac: Up to 867 Mbps
- 802.11n: Up to 300Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
- 802.11b: 5.5, 11Mbps
- 802.11a: 54 Mbps

* 4G FDD LTE Speeds: DL 600Mbps,UL 150Mbps

* Operation Temperature: -20℃ to +45℃

* Charger: 12V/1.5A EU

* Other features:
- TCP/IP,UDP,SNTP supported
- IPV6 only/CLAT supported
- MAC filter supported
- IPV4/IPV6(Dual stack) Dual stack
- TR069 supported
- SIM LOCK Can be customized
- SMS supported

* Hardware: Memory: 256MB NAND flash + 256MB LPDDR

* Button: Reset hole, WPS button, Power button

* Dimensions: 105mm x 163mm

* Weight: 446g

* Certifications: CE/REACH/ROHS/WEEE/Wi-Fi
