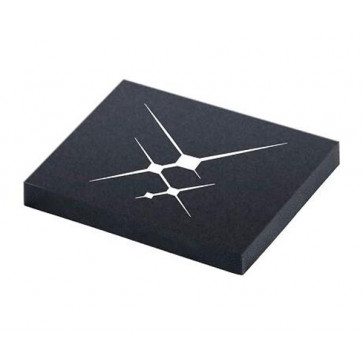

Skywork SKY68001-31 LTE CatM1/CATNB1 IoT Module

Skywork SKY68001-31 is a hybrid, multi-band multi-chip RF front-end (RFFE) module supporting cellular LTE CatM1/CATNB1 (half-duplex system) transceiver platforms. The module integrates the entire RF front end necessary for an LTE multi-band radio operating in low-band B5/B8/B12/B13/B17/B18/B19/B20/B26 and mid-band B1/B2/B3/B4/B25/B39/B66 frequencies, including Rx low-pass filters, broadband PA with bias controller, Tx low-pass harmonic filter, antenna switch, and MIPI RFFE controller.

Skywork SKY68001-31 functional operation is fully controllable by a single MIPI interface which is used to drive the PA in various optimized bias modes as well as providing band selection and controlling the antenna switch Tx, Rx, and band selection.

Skywork SKY68001-31 Features:

* Cost-optimized front end for low-data-rate applications

* Low-loss post-PA transmit front end for enhanced transmitter efficiency (compared to LTE-FDD radio front ends)

* Broadband PA supporting APT mode of operation or Vcc fixed supply (≥ 2.85 V)

* Integrated low-pass filters for harmonic rejection to comply with spurious emission requirements

* Integrated SP6T antenna Tx/Rx switch

* Integrated Rx low-pass filters for out-of-band rejection

* Optimized to support LTE for 1 to 12 RB

* MIPI RFFE control interface, 2.0 compliant

* Pin-to-pin compatible with the SKY68000-31 and SKY68011-31

* Two additional Aux ports offer greater flexibility for more bands on the Tx or Rx path

* Adaptive biasing scheme for maximum PA efficiencies

* Small, low profile package (4 mm x 5 mm x 0.9 mm) (MSL3 @ 260 °C per JEDEC J-STD-020)

* Lead (Pb)-free and RoHS-compliant

Skywork SKY68001-31 Applications:

* Cellular IoT modem devices targeting low-power wide area network (LPWAN):
 - 4G LTE technology capability
 - Dedicated LTE half-duplex operation (HD-FDD) for Cat-M1/Cat-NB1
 - Designed to meet 3GPP Rel-12 and Rel-13 specifications (with compatible cellular transceiver)

* LTE universal modem products (low-band and mid-band):
 - Low-band B5/B8/B12/B13/B17/B18/B19/B20/B26
 - Mid-band B1/B2/B3/B4/B25/B39/B66

* PAE optimized for Class 3 LTE output power (+23 dBm)
