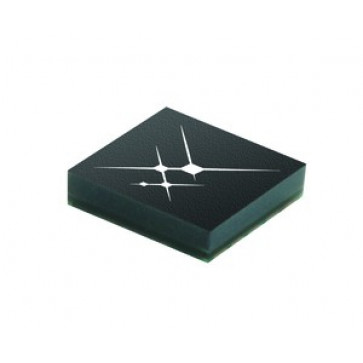

Skywork SKY68001-21 LTE Cat0/CatM1/CATNB1 Module

* LTE Cat0/CatM1/CATNB1 Module


* LTE universal modem


* Small, low profile package


* Cellular IoT modem devices targeting low-power wide area network


* MIPI RFFE control interface, 2.0 compliant

Sign up for price alert Sign up to get notified when this product is back in stock

Availability: Out of stock

$129.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

Skywork SKY68001-21 is a hybrid, multi-band multi-chip RF front-end (RFFE) module supporting cellular LTE Cat0/CatM1/CATNB1 (half-duplex system) transceiver platforms. The module integrates the entire RF front end necessary for an LTE multi-band radio operating in low-band(B5/B8/B12/B13/B17/B18/B19/B20/B28) and mid-band (B1/B2/B3/B4/B25/B66 [AWS]) frequencies, including Rx low-pass filters, broadband PA with bias controller, Tx low-pass harmonic filter, antenna switch, and MIPI RFFE controller.

Skywork SKY68001-21 Applications:

* Cellular IoT modem devices targeting low-power wide area network (LPWAN):
 - 4G LTE technology capability
 - Dedicated LTE half-duplex operation (HD-FDD) for Cat0/CatM1/CATNB1
 - Designed to meet 3GPP Rel-12 and Rel-13 specifications (with compatible cellular transceiver)

* LTE universal modem products (low-band and mid-band):
- Low-band B5/B8/B12/B13/B17/B18/B19/B20/B28
- Mid-band B1/B2/B3/B4/B25/B66 (AWS)

* PAE optimized for Class 3 LTE output power (+23 dBm)


Skywork SKY68001-21 Features:

* Cost-optimized front end for low-data-rate applications

* Low-loss post-PA transmit front end for enhanced transmitter efficiency (compared to LTE-FDD radio front ends)

* Broadband PA supporting APT mode of operation or Vcc fixed supply (≥ 2.85 V)

* Integrated low-pass filters for harmonic rejection to comply with spurious emission requirements

* Integrated SP6T antenna Tx/Rx switch

* Integrated Rx low-pass filters for out-of-band rejection

* Optimized to support LTE for 1 to 36 RB

* MIPI RFFE control interface, 2.0 compliant

* Lead (Pb)-free and RoHS-compliant

* Pin-to-pin compatible with the SKY68000-21 and the SKY68011-21

* Two additional Aux ports offer greater flexibility for more bands on the Tx or Rx path

* Adaptive biasing scheme for maximum PA efficiencies

* Small, low profile package (4 mm x 5 mm x 0.9 mm) (MSL3 @ 260 °C per JEDEC J-STD-020)
