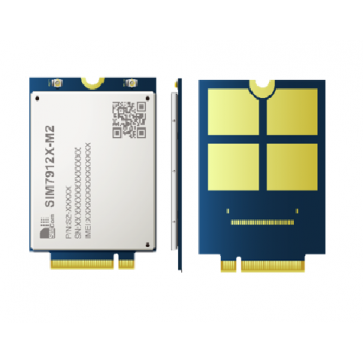

SIMCOM SIM7912A-M2 LTE Cat12 Module

SIMCOM SIM7912A-M2 is the LTE Cat 12 module which supports wireless communication modes of LTE-TDD/LTE- FDD/HSPA+. It supports maximum 600Mbps downlink rate and 150Mbps uplink rate.

SIMCOM SIM7912A-M2 adopts M.2 form factor. It is easy for customers to integrate.

SIMCOM SIM7912A-M2 supports multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7912X-M2 series modules. Meanwhile SIM7912A-M2 integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices and remote diagnostics etc.

SIMCOM SIM7912A-M2 module specifications：

* SIMCOM LTE Wireless Module

* Category: LTE Cat12

* Support LTE-TDD/LTE-FDD/WCDMA networks

* Supported frequency bands:

- LTE-FDD B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B28/B66
- LTE-TDD B40/B41/B42/B43/B46/B48
- WCDMA B2/B4/B5/B6/B19

* LTE Download speed up to 600Mbps, upload speed to 150Mbps

* HSPA+ DL 42Mbps, UL 11.2Mbps

* Supply voltage range: 3.135V~ 4.4V; Typ: 3.3V

* Control Via AT Commands

* Operation temperature: -30℃ to +70℃

* Dimensions: 42.0*30.0*2.3mm

* Weight: 6.1g

* Support DL 2XCA,DL 3XCA,DL 256QAM

* Support UL 2XCA

* GNSS (GPS, GLONASS and BeiDou)

* Other Features
- USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10
- USB Driver for Linux /Android
- RIL supporting for Android 6/7/8/9
- MBIM to Win8/win10
- Firmware update via USB
- TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/DNS
- SSL3.0/TLS1.0/TLS1.2
- FOTA

* Interfaces
- USB3.0 x1 (high-speed)
- USB2.0 x1 (high-speed)
- SIM card x1 (1.8V and 3V)
- PCM x1
- I2C x1
- GPIO x1
- Diversity Receiver
