* SIMCOM LTE Cat3 Module

* Form factor: Mini PCIe

* Target market: Japan(docomo/au)

* LTE DL 100Mbps/UL 50Mbps

* Control Via AT Commands

Sign up for price alert

Availability: In stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

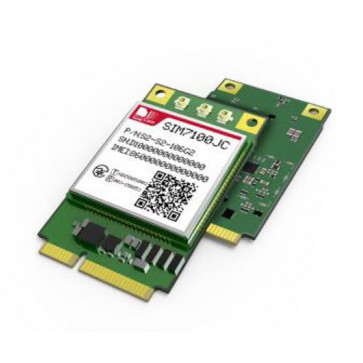

SIMCOM SIM7100JC-PCIe is an LTE Cat3 module for the Japanese market, which supports 100Mbps (DL) /50Mbps (UL) LTE data services. In order to improve the adaptability of the network environment, it also supports 3G and 2G network. SIMCOM SIM7100JC-PCIe Module provides a rich application interface including USB、UART、SIM card、I2C and GPIO and supports multiple protocols like TCP/IP/ FTP/HTTP.

SIMCOM SIM7100JC-PCIe supports A-GPS and GPS, within the KDDI network, even in room or subway where the GPS signal is weak,it can use KDDI LTE network assistant position system to get a high precision position track data. That is the benefit to deploying IOT applications which based on position information.

SIMCOM SIM7100JC-PCIe Module Specifications:

* LTE Cat3 module

* Chipset: Qualcomm MDM9215

* Support 4G TDD-LTE Band B41

* Support 4G FDD-LTE Band B1/B3/B8/B18/B19

* Support UMTS/HSDPA/HSPA+ 800/900/2100MHz

* Support GSM/GPRS/EDGE 900/1800MHz

* Control Via AT Commands

* Supply voltage range: 3.4V~ 4.2V

* Operation temperature: -40℃ to +85℃

* Dimension: 30 x 30 x 2.9 mm

* Weight: 5.9g

* GNSS gpsOne Gen 8B;standalone;assisted,XTRA;

* LTE Uplink up to 50Mbps,Downlink up to 100Mbps

* HSPA+ Uplink up to 5.76 Mbps,Downlink up to 42 Mbps

* UMTS Uplink/Downlink up to 384Kbps


* WCDMA data rate 57.6Kbps

* WCDMA 64kbps CSD for Video call

* USB Driver for Microsoft Windows2000/XP/Vista/7/8

* USB Driver for Windows CE/Mobile

* USB Driver for Linux /Android

* RIL supporting for Android/Windows CE/Mobile

* Automatic installation for windows

* Linux API SDK

* Firmware update via USB




* Gobi SDK to the Win7/Win8/Linux

* MBIM to Win8

* Source code of the PC manager of the device for reference
