* SIMCOM LTE Cat3 Module

* Form factor: Mini PCIe

* LTE DL 100Mbps/UL 50Mbps

* Control Via AT Commands

* Firmware update via USB

Sign up for price alert

Availability: In stock


Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

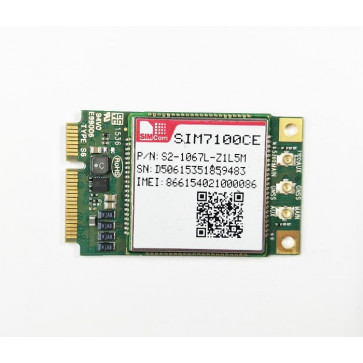

SIMCOM SIM7100CE-PCIe is a complete multi-band TDD-LTE/FDD-LTE/TD-SCDMA/WCDMA/CDMA/GSM/GNSS module solution in mini PCIe type which supports LTE up to 100Mbps for downlink and 50Mbps for uplink data transfer. It is combined with a SIM7100CE module and a mini PCIe adapter board.

SIMCOM SIM7100CE-PCIe Module Technical Specifications:

* LTE Cat3 module

* Three-Band FDD-LTE B1/B3/B8

* Four-Band TDD-LTE B38/B39/B40/B41

* Dual-Band UMTS/HSDPA/HSPA+ B1/B8

* Dual-and TD-SCDMA B34/B39

* Single-Band CDMA 1X/EVDO BC0

* Dual-Band GSM/GPRS/EDGE 900/1800 MHz

* Control Via AT Commands

* Supply voltage range: 3.4V~ 4.2V

* Operation temperature: -40℃ to +85℃

* Dimension: 30 X 30X 2.9 mm

* Weight: 5.8g

* GNSS: gpsOne Gen 8B;standalone;assisted,XTRA;

* LTE Uplink up to 50Mbps, Downlink up to 100Mbps

* TD-HSDPA/HSUPA Uplink up to 2.2 Mbps,Downlink up to 2.8 Mbps

* TD-SCDMA Uplink up to 128Kbps, Downlink up to 384Kbps

* HSPA+ Uplink up to 5.76 Mbps, Downlink up to 42 Mbps

* UMTS Uplink/Downlink up to 384Kbps

* CDMA 2000 EVDO: Max. 3.1Mbps(DL), Max. 1.8Mbps(UL)

* EDGE Class: Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)

* GPRS: Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)


* GSM data rate 14.4Kbps

* WCDMA data rate 57.6Kbps

* WCDMA 64kbps CSD for Video call

* USB Driver for Microsoft Windows 2000/XP/Vista/7/8

* USB Driver for Windows CE/Mobile

* USB Driver for Linux /Android

* RIL supporting for Android/Windows CE/Mobile

* Automatic installation for windows

* Linux API SDK

* Firmware update via USB




* Gobi SDK to the Win7/Win8/Linux

* MBIM to Win8

* Source code of the PC manager of the device for reference

* Interfaces: USB2.0, UART, SIM card, SPI, I2C, Keypad(5*5), Constant current sink, GPIO, ADC, PCM, SDIO

* Certifications: Rohs, REACH, CCC, TA, CTA
