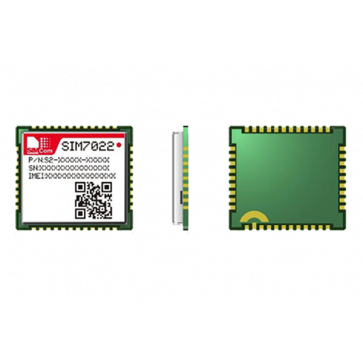

SIMCOM SIM7022 LTE NB-IoT Module
* SIMCOM NB-IoT Module
* Control Via AT Commands
* Speed: Uplink 159Kbps /Downlink 127Kbps
* Firmware update via UART
Availability: In stock
SIMCOM SIM7022 is a multi-band NB-IoT module solution in a SMT type. It has strong extension capability with rich interfaces including UART, GPIO etc. The module provides much flexibility and ease of integration for customer's application.
The package of SIM7022 is compatible with SIM800C and SIM7020. This also maximizes the investments of customers, and enables a short time-to-market.
It is designed for applications that need low latency, Low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health etc..
SIMCOM SIM7022 module Specifications:
General Features
--------------------------
LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B66/B70/B85
Control Via AT Commands
Supply voltage range: 2.1V-4.3V
Operation temperature: -40℃ to +85℃
Dimensions: 17.6 X 15.7 X 2.3mm
Weight: 1.3g±0.2g
Data
--------------------------
Uplink: 159Kbps Downlink:127Kbps
SMS
--------------------------
Text and PDU mode
Consumption
--------------------------
PSM: 0.8 uA
sleep: TBD
Idle: TBD
eDRX: TBD
Other Features
--------------------------
Firmware update via UART
TCP/UDP
HTTP/HTTPS/TLS/DTLS/DNS/NTP/PING
LWM2M/COAP/MQTT/MQTTS
Ayla Cloud/Ali Cloud
FOTA
EAT
Interfaces
--------------------------
UART
USIM card (1.8V/3V)
Netlight
RI
Reset
ADC
GPIO
WARKUP
Certifications
--------------------------
RoHS* / REACH*
CE-RED*
GCF*
Deutsche Telekom*/Vodafone*/Telefonica*
