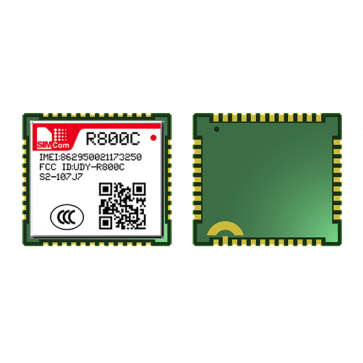

SIMCOM R800C 2G GSM/GPRS Module

SIMCOM R800C is a dual-band GSM/GPRS module for the castle hole package. Its stable performance, small size and high cost performance can meet the various needs of customers.

SIMCOM R800C operates at GSM/GPRS 900/1800MHz and can transmit low-power SMS and data information. With a size of 17.6*15.7*2.3mm, the R800C can be used in most compact product designs.

SIMCOM R800C module specifications:

* Form factor:

* Frequency band: 2G Dual-band GSM/GPRS 900/1800MHz

* GPRS multi-slot class 12/10

* GPRS mobile station class B

* Meets GSM 2/2+ standard –
- Class 4 (2 W @ 900MHz) –
- Class 1 (1 W @ 1800MHz)

* Size: 17.6*15.7*2.3mm

* Weight: approx. 1.4g

* Controlled by AT command (3GPP TS 27.007, 27.005 and SIMCOM Enhanced AT Command Set)

* Supply voltage range: 3.4 ~ 4.2V

* Low power consumption

* Operating temperature range: -40 °C ~85°C

* SMS
- Point-to-point MO and MT
- SMS broadcast
- Text and PDU mode

* Software features
- 0710 MUX protocol
- Embedded TCP/UDP protocol
- FTP*/HTTP*/MQTT*/NTP*

* Compatibility: AT cellular command interface

* Interface
- 42 SMT pins
- SIM interface (3V/ 1.8V)
- 2 serial ports, 1 download port
- GPIO
- ADC
- GSM antenna pad

* Certification
- 3C/TA/CTA
- ROHS
- REACH
