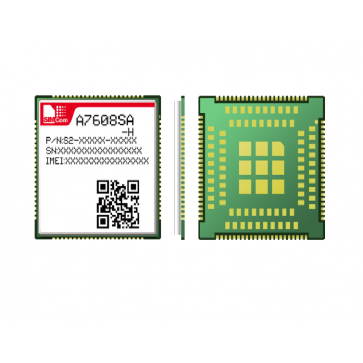

SIMCOM A7608SA-H LTE Cat4 Module

SIMCOM A7608SA-H is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.

SIMCOM A7608SA-H adopts LCC+LGA form factor and is compatible with SIM5320/SIM5360 series(UMTS/HSPA+ modules), and SIM7600/SIM7600-H series(LTE modules), which enables smooth migration from 3G products to LTE products, and greatly facilitates more compatible product design for the customer needs.

SIMCOM A7608SA-H supports multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7600 series modules. Meanwhile A7608SA-H integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.

SIMCOM A7608SA-H module specifications：

* Frequency Bands：
- LTE-TDD B38/B40/B41
- LTE-FDD B1/B2/B3/B4/B5/B7/B8/ B20/B28/B66
- UMTS/HSPA+ B1/B2/B5/B8
- GSM/GPRS/EDGE 850/900/1800/1900 MHz

* Supply Voltage 3.4V ~ 4.2V, Typ: 3.8V

* Control Via AT Commands

* Operation temperature -40℃ ~ +85℃

* Dimensions 30.0*30.0*2.5mm

* Weight 4.6±0.1g

* Other Features
- USB Driver for Microsoft Windows 7/8/10
- USB Driver for Linux /Android
- RIL supporting for Android 5.0/6.0/7.0/8.0/9.0
- Firmware update via USB/FOTA
- TCP/IP/IPV4/IPV6/MultiPDP/FTP/FTPS/HTTP/HTTPS/DNS
- RNDIS/PPP/ECM
- SMS
- SSL

* Interfaces
- USB2.0
- UART
- (U)SIM card(1.8V/3V )
- PCM
- Analog audio
- RMII*
- PCIE*（Host Mode）
- MMC/SD
- SDIO*
- ADC
- I2C
- GPIO
- Antenna: Primary/Diversity*/GNSS*

* Data Transfer
- LTE Cat 4: Uplink up to 50Mbps, Downlink up to150Mbps
- HSPA+: Uplink up to 5.76Mbps，Downlink up to 42 Mbps
- UMTS Uplink/Downlink up to 384Kbps
- EDGE Uplink/Downlink up to 236.8Kbps
- GPRS Uplink/Downlink up to 85.6Kbps

* Certifications: RCM#/Anatel#/RoHS#/REACH#
