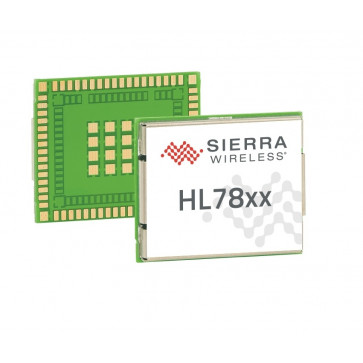

Sierra Wireless AirPrime HL7812

Sierra Wireless HL7812 module is a global LPWA module with 2G fallback offering ultra low power, small footprint and deep coverage. It supports 3GPP's Release 14 features and offers best-in-class power consumption, high transmit power and the highest level of security from the edge to the cloud. This ensures field longevity and reduces the risk of your mission critical applications such as asset tracking, smart energy, smart cities and more.

Sierra Wireless AirPrime HL7812 Module Specifications:

* Product type: 4G LTE IoT Module

* Category: Cat-M1/NB2

* Target region: Global

* Frequency Bands:
- 4G LTE Band B1, B2, B3, B4, B5, B8, B9, B10, B12, B13, B17, B18, B19, B20, B25, B26, B27, B28, B66, B85
- 2G Band GSM/GPRS 850, 900, 1800, 1900MHz

* Data Speed:
- Peak Download Rate: Cat-M1 590Kbps, Cat-NB2 127Kbps
- Peak Upload Rate: Cat-M1 1100Kbps, Cat-NB2 158Kbps

* Satellite Systems: GPS+Glonass

* Firmware: Secure boot, Pre-certified firmware

* Interfaces:
- UART: 1 X 8-wire
- USB: 1
- ADC: 2
- GPIO: 8
- Tx ON Indicator: 1
- SIM interface: 1.8V/3V1

* Hardware
- CF3 Form Factor：LGA
- Dimensions: 15x18x2.4mm
- Temperature Range: Industrial Grade: -40°C / +85°C

* Embedded SIM: Optional Ready-to-Connect (Sierra Wireless USIM)

* Cloud Services: Free FOTA upgrades, Connectivity Management option, Device Management option
