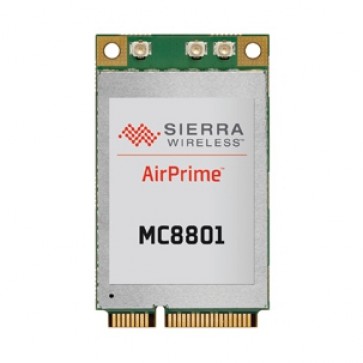

Sierra MC8801 3G 42Mbps PCI Express Mini Card

Sierra MC8801 PCI Express Mini Card is a 3G/HSPA+ Embedded Module which could offer up to 42Mbps download speed. Sierra MC8801 is upgraded from the MC8700 Module. The MC8801 Module support UMTS/HSPA+ qual-bands 850/900/1900/2100MHz and 2G GSM/GPRS/EDGE 850/900/1800/1900MHz. The Sierra MC8801 could help the OEM devices to expand worldwide with fastest mobile broadband network available.

Sierra MC8801 Module Key Features:

* 3G/DC-HSPA+ Embedded module

* Peak downlink speeds up to 42 Mbps

* Peak uplink speeds up to 5.76 Mbps

* Support GPS

* High-speed, broadband connectivity

MC8801 Module Technical Specifications:

* Connectore: 52-Pin Edge Connector

* Network mode

-- 3G WCDMA/HSPA+ 850/900/1900/2100MHz

-- 2G GPRS/GSM/EDGE 850/900/1800/1900MHz

* Communications Interfaces: USB 2.0 High speed

* Cellular Radio

- Quad Band GSM 850/900/1800/1900 MHz
- Quad Band WCDMA 850/900/1900/2100 MHz

* Cellular Data: DC-HSPA+/WCDMA/UMTS/GSM/GPRS/EDGE

* RF Connector

- UFL Socket (Main RF)
- UFL Socket (Diversity)
- UFL Socket (GPS)

* Power Supply: Input Voltage Range: -25°C to +60°C

* Dimensions/Size: L: 51 mm, W: 30 mm, D: 4.5 mm

* Carriers Approved: Telstra, T-Mobile (EU)
