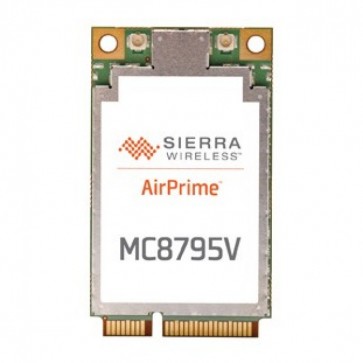

Sierra AirPrime MC8795V PCI Express Mini Card

Sierra AirPrime MC8795V PCI Express Mini Card is an new embedded module that support HSPA technology, Voice, GPS and Serial interfaces. Sierra MC8795V could work on HSDPA/UMTS 850/900/1900/2100MHz for up to 7.2Mbps download speed and 5.76Mbps upload speed.

Sierra MC8795V Module Technical Specifications:

* Connectore: 52-Pin Edge Connector

* Network mode

-- 3G WCDMA/HSPA+ 850/900/1900/2100MHz

-- 2G GPRS/GSM/EDGE 850/900/1800/1900MHz

-- GPS 1575MHz

* Digital Inputs/Outputs: 4 Programmanble GPIO

* Communications Interfaces: Serial (UART) Interface and USB 2.0

* Analogue Interfaces: Analog audio (2 MIC, 2 SPK), PCM audio interface

* Cellular Radio

- Quad Band GSM 850/900/1800/1900 MHz
- Quad Band WCDMA 900/1900/2100 MHz

* Cellular Data

- UMTS with HSPA Category 8 (7.2 Mbps downlink)
- HSUPA Category 5 (5.76 Mbps uplink)
- EDGE/GPRS MS Class 12

* RF Connector

- UFL Socket (Main RF)
- UFL Socket (Diversity/GPS)

* Power Supply: Input Voltage Range: 3.0 ~ 3.6 V

* Dimensions/Size: L: 51 mm, W: 30 mm, D: 4.5 mm
