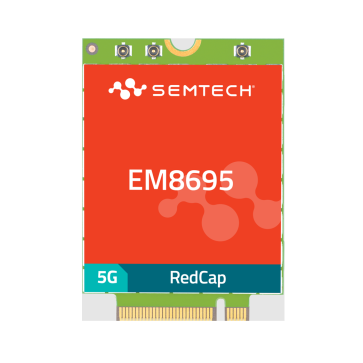

Semtech EM8695 5G RedCap M.2 Module

Semtech (Sierra Wireless) EM8695 is a first-generation 5G RedCap (Reduced Capability) module designed for mid-tier IoT applications such as industrial sensors, asset tracking, and wearables. Built on the Qualcomm Snapdragon X35 platform, it offers an energy-efficient path from LTE Cat-4/6 to 5G.

Semtech EM8695 5G RedCap Module Specifications:

* Standards: 3GPP Release 17 (5G RedCap) with 3GPP Release 16 (LTE) fallback.

* Frequency Band Details
- 5G NR Sub-6: n1, 2, 3, 5, 7, 8, 12, 13, 14, 18, 20, 25, 26, 28, 30, 38, 40, 41, 48, 66, 70, 71, 77, 78, 79.
- 4G LTE: B1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 30, 34, 38, 39, 40, 41, 42, 43, 48, 66, 70, 71.

* Peak Data Rates: Up to 223 Mbps downlink and 123 Mbps uplink.

* Global Support: Single global SKU supporting 25 worldwide 5G NR bands and 29 LTE bands.

* Efficiency: Reduces power consumption by up to 65% compared to traditional LTE Cat-4 modules.

* Form Factor: Industrial-grade M.2 (3042), pin-compatible with existing Sierra Wireless 4G modules for seamless upgrades.

* Dimensions: 30.0 mm x 42.0 mm.

* Host Interface: USB 2.0 High Speed.

* Operating Temperature: -30°C to +75°C

* Interfaces:
- USB: USB 2.0
- GPIO: Yes
- Tx ON Indicator: Yes
- SIM Interface 1.8V/3V: Yes

* Integrated GNSS: Supports dual-band L1 and L5 (GPS, GLONASS, Galileo, BeiDou) for high-accuracy tracking.

* Connectivity Options: Dual SIM Single Standby (DSSS) and optional eSIM.

* Security: Features Secure Boot and secure debug functions to prevent unauthorized code execution.

* Driver Support: Compatible with Windows 10/11, Linux, and Android.

* APPROVALS
- Carrier: AT&T (FirstNet), Anterix, Verizon, T-Mobile, Telstra*, DoCoMo*, SoftBank*, KDDI*
- Regulatory: FCC, IC, GCF, JATE/Telec*, NCC, PTCRB, EU RED
