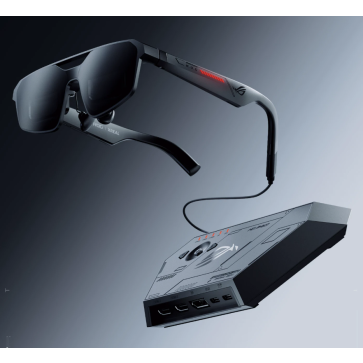

ROG XREAL R1 Smart AR Glasses

ROG XREAL R1 is a high-performance gaming AR glasses co-developed with ASUS. Engineered specifically for PC, console, and handheld players, it features an industry-leading 240Hz refresh rate and an ultra-fast 0.01ms response time to eliminate motion blur and ghosting in competitive games.

The glasses integrate deeply into the ASUS ROG ecosystem. When plugged into devices like the ROG Ally, players can directly adjust settings like screen size, tint levels, and spatial locking via the handheld's interface without halting gameplay.

ROG XREAL R1 Core Specifications:
------------------------------------------
• Display: Dual Sony Micro-OLED panels.
• Resolution: 1920 × 1080 (FHD) per eye.
• Refresh Rate: Up to 240 Hz (via Frame Rate Boost image scaling).
• Response Time: 0.01 ms.
• Peak Brightness: 700 nits.
• Color Accuracy: 106% sRGB coverage.
• Weight: 91 grams.
• Audio: Dual open-ear directional speakers with Sound by Bose.
• Microphone: Integrated 4 × microphone array with noise reduction.

Key Spatial & Gaming Features
------------------------------------------
• Native 3DoF Spatial Tracking: Powered by an on-board IMU sensor allowing Anchor Mode (pins the screen in fixed physical space) and Follow Mode (smoothly centers with your gaze).
• Cinematic Scale Display: Features a wide 57° Field of View (FOV) that covers 95% of the human focus area, projecting an equivalent 171-inch virtual screen at a 4-meter distance.
• Electrochromic Dimming: Incorporates 3 manually adjustable color-temperature tint levels, alongside an auto-transparency mode triggered via anchor tracking to instantly adapt to ambient room lighting.
• Instant 3D Immersion: Real-time hardware-level 2D-to-3D depth conversion to add immediate stereoscopic spatial volume to a player's existing game library.
• Ecosystem Connectivity: Connects natively via USB-C. It is also fully compatible with the ROG Control Dock, which bridges standard stationary setups using HDMI 2.0 and DisplayPort 1.4 while introducing full HDR support.
• Physical IPD Shell Sizes: Available in two distinct hardware variations to ensure proper visual convergence based on Interpupillary Distance: N / Narrow (57mm–66mm) and B / Broad (66mm–75mm).
