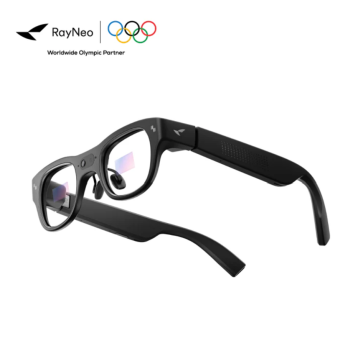

RayNeo X3 Pro AI+AR Smart Glasses

RayNeo X3 Pro is a standalone pair of true AI+AR smart glasses designed to blend real-time contextual spatial computing with an everyday wearable design. Unlike simple display glasses, the X3 Pro features onboard computing architecture, active environment sensing, and integration with multimodal AI models like Google Gemini Live.

RayNeo X3 Pro AI+AR Smart Glasses Specifications:

Display & Optical Engine
------------------------------------------
• Display Type: Binocular Full-Color MicroLED displays
• Optical Waveguide: Diffractive Waveguide tech co-developed with Applied Materials
• Resolution: 640 × 480 per eye
• Refresh Rate: 60Hz
• Peak Brightness: Up to 6,000 nits (3,500 nits average)
• Field of View (FOV): 30°
• Virtual Display: Simulates a floating 43-inch screen at 2 meters

Compute Platform & Hardware
------------------------------------------
• Processor: Qualcomm Snapdragon AR1 Gen 1 SoC (4nm architecture)
• Memory & Storage: 4GB RAM + 32GB ROM
• Weight: 76 grams (alloy frame build)
• Sensors: Wear detection sensor, 6-DoF inside-out motion tracking, and SLAM support.

Dual Camera Setup
------------------------------------------
• Main Camera: 12MP Sony IMX681 sensor supporting up to 4K photo capture and 3K/1440p video recording.
• Secondary Camera: OV Spatial Camera utilized for black-and-white perception tracking and environmental positioning.

Smart OS & AI Integration
------------------------------------------
• Operating System: RayNeo AIOS 3D user interface
• AI Engine: Google Gemini Live integration supporting multi-modal voice processing.
• Core Applications: Heads-up AR navigation (Google Maps), real-time transcription, and live translation supporting 14 languages.
• Control Mechanisms: 5-way touch temple controls, voice activation, and Apple Watch companion gestures.

Audio, Battery & Power
------------------------------------------
• Audio System: Quad-speaker directional sound array with dual opposing acoustic chambers
• Microphones: 3-microphone beamforming configuration with noise cancellation
• Battery Capacity: 245 mAh
• Battery Lifecycle: Rated for up to 5 hours of standalone audio recording, 3 hours of music playback, or up to 36 minutes of continuous video capture.
• Charging: Supports pass-through operation using the bundled 1.2m Type-C cable; recharges fully in roughly 38 minutes.
