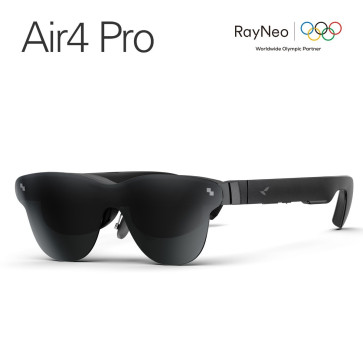

RayNeo Air 4 Pro 3D Smart AR Glasses

RayNeo Air 4 Pro smart AR glasses are designed as a portable private cinema or "pocket TV". They stand out in the augmented reality space as one of the first smart glasses to offer comprehensive HDR10 support.

RayNeo Air 4 Pro AI Glasses Specifications:

Display & Optical Engine
------------------------------------------
• Panel Type: Dual-layer 0.6-inch SeeYa Micro-OLED displays
• Optical Engine: Peacock 2.0 (BirdBath configuration)
• Resolution: 1920 × 1080 per eye (Full HD)
• Refresh Rate: Up to 120Hz
• Peak Brightness: 1,200 nits
• Virtual Screen Size: Simulates a 201-inch screen at a 6-meter distance
• Field of View (FOV): 46°
• Pixels Per Degree (PPD): 49 PPD
• Color Performance: 98% DCI-P3, 145% sRGB, Color Accuracy of ΔE < 2, and 10-bit depth supporting over 1 billion colors
• Contrast Ratio: 200,000:1

Processor & Audio
------------------------------------------
• Co-Processor: Custom Pixelworks Vision 4000 image quality chip. It handles system-level, real-time AI SDR-to-HDR upscaling and 2D-to-3D video conversion.

• Audio System: Quad-speaker array acoustic design precision-tuned by Bang & Olufsen (B&O). Includes Whisper Mode 2.0 phase-canceling technology to prevent external sound leakage.

Ergonomics & Eye Safety
------------------------------------------
• Weight: 76 grams
• Ergonomics: Front/rear weight balancing (46.7% front, 53.3% rear), a 9-way temple adjustment tracking system, and 3-position nose pads.
• Eye Protection: 3840Hz high-frequency hybrid PWM dimming, low blue light, and flicker-free certifications (TÜV SÜD).
• Prescription Lenses: Magnetic frame integration supporting custom myopia corrective lens inserts through partners like Lensology.

Connectivity & Power
------------------------------------------
• Connection Port: USB-C requiring DisplayPort (DP) Alt Mode for native plug-and-play video mirroring.
• Device Compatibility: Fully compatible with iPhone 15/16 series, DP-capable Android smartphones, MacBooks, Windows PCs, Steam Deck, ROG Ally, Nintendo Switch, and major home consoles (consoles require an external HDMI adapter).
