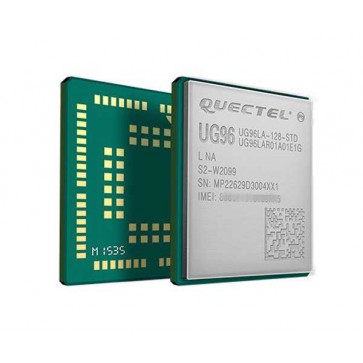

Quectel UG96 UMTS/HSPA Module

* Quectel UMTS/HSDPA Module


* HSDPA speed up to 7.2Mbps


* Worldwide UMTS/HSDPA and GSM/GPRS/EDGE coverage


* Easy drop-in migration to GSM/GPRS module


* Compact SMT form factor ideal for size-constrained applicatins


* Super slim profile in LGA package


* High-quality data and image transmission


* Robust mounting and interfaces

Sign up for price alert

Availability: In stock

$64.00

Worldwide express shipping and delivery without delay

Call us now for more info if you have any questions about our products

Qualified products and guarantee your money back if return.

Enjoy shopping and 5-star service here!

Details
Details

Quectel UG96 is a Penta-band UMTS/HSPA module offering a maximum data rate of 7.2Mbps downlink and 5.76Mbps uplink. With the outstanding feature of fully pin-to-pin compatibility with Quectel UMTS/HSPA UG95 and GSM/GPRS M95 module, it supports GSM/GPRS/EDGE and UMTS/HSPA/HSUPA networks, which enables integrators and developers to design their applications once and truly benefit from the flexibility of worldwide coverage and service afforded by the combination of the two most prevalent cellular technologies worldwide.

With cost-effective SMT form factor of 22.5 × 26.5 × 2.2mm and high integration level, UG96 enables integrators and developers to easily design their applications and take advantage from the module’s low power consumption and mechanical intensity. Its advanced LGA package allows fully automated manufacturing for high-volume applications.

A rich set of Internet protocols, industry-standard interfaces (USB/UART/I2C/Status Indicator/PCM) and abundant functionalities (USB drivers for Windows XP, Windows 7, Windows CE, Linux, Android/eCall) extend the applicability of the module to a wide range of M2M applications such as wireless POS, metering, telematics, security, industry PDA/PC and tablet.


Key Benefits

* Worldwide UMTS/HSPA+ and GSM/GPRS/EDGE coverage

* Compact SMT form factor ideal for size-constrained applications

* Easy drop-in migration to GSM/GPRS module

* Super slim profile in LGA package

* High-quality data and image transmission even in a harsh environment

* Fast time-to-market: Reference designs, evaluation tools and timely technical support minimize design-in time and development efforts

* Robust mounting and interfaces


Quectel UG96 3G module Specifications:

* Frequency bands
> 3G 800/850/900/1900/2100MHz@UMTS
> 2G 850/900/1800/1900MHz@GSM

* Data Rates
> HSDPA: Max.7.2Mbps (DL)
> HSUPA: Max.5.76Mbps (UL)
> UMTS: Max.384Kbps (DL)/Max.384Kbps (UL)
> EDGE: Max.296Kbps (DL)/Max.236.8kbps(UL)
> GPRS: Max. 107Kbps (DL)/Max. 85.6Kbps (UL)
> CSD: 14.4Kbps (DL)


* Voice
> Speech Codec Modes: HR, FR, EFR, AMR, AMR-WB
> Echo Arithmetic: Echo Cancellation, Noise Reduction
> Protocols: TCP/UDP/PPP/MMS/HTTP/HTTPS/SMTP/SMTPS/FTP/NTP/NITZ/PING/SSL

* SMS
> Point-to-point MO and MT
> SMS Cell Broadcast
> Text and PDU Mode

* Interfaces
> UART x 1: full functions
> (U)SIM × 1 : 1.8V/ 3.0V
> USB × 1 : USB 2.0 with High Speed up to 480Mbps
> Audio Digital: Digital Audio through PCM Interface (optional)
> I2C × 1
> PCM x 1
> USIM: 1.8V/3.0V
> Netlight: Indication for Network Status
> STATUS: Indication for Power On and Off Status

* Software Features

> Drivers: USB Serial, Windows XP, Windows 7, Linux2.6/3.0, Andriod 2.3/4.0/4.2
> eCall*: Accident, Emergency Services
> Firmware Update: Firmware Update via USB and UART Interface
> RAMFile: RAM File System Access and Management
> DFOTA: Delta Firmware Upgrade Over The Air


* General Features

> Extended Temperature: -40°C ~ +85°C
> Dimensions: 22.5mm × 26.5mm × 2.2mm
> Weight: Approx. 3.1g
> Supply Voltage: 3.3V ~ 4.3V, 3.8V typ.
> GPRS/EDGE: Multi-slot Class 33
> UMTS: Release 99/7
> GSM: Release 99/4
> HSUPA: Release 7 (category 6)
> HSDPA: Release 7 (category 8)
> 3GPP TS27.007, 27.005 and other enhanced AT Commands


* Approvals: RoHS Compliant/ CE/GCF/ DoC/ FCC/ PTCRB/RCM/ IFETEL/ Telefonia/Movistar*/ ICASA/ JATE/TELEC/ Anatel/ Telefonica
