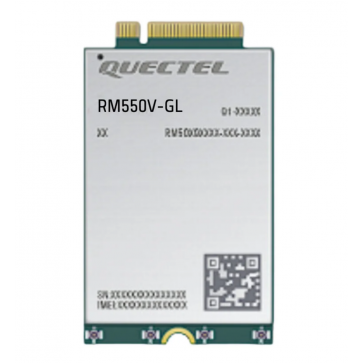

Quectel RM550V 5G Sub-6GHz M.2 Module

Quectel RM550V-GL M.2 5G Module Specifications：

* Target Market: Global

* Product type: 5G Module

* Chipset: Qualcomm Snapdragon x72

* 5G: 3GPP Release 17 NSA/SA operation, Sub-6 GHz

* Form factor: M.2

* Dimensions: 52.0× 30.0 × 2.3mm

* 5G:
- 5G Sub-6 NSA Band: n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29(Rx)/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79/ 92/ 94
- 5G Sub-6 SA Band: n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29(Rx)/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79/ 91/ 92/ 93/ 94
- 5G CA/BW: Up to 3 DL CA, 200 MHz NR BW
- DL 4 × 4 MIMO n1/ 2/ 3/ 7/ 25/ 30/ 38/ 40/ 41/ 48/ 66/ 77/ 78/ 79
- UL 2 × 2 MIMO n38/ 41/ 48/ 77/ 78/ 79

* 4G:
- LTE Category: DL Cat 20/ UL Cat 18
- LTE Bands: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 34/ 38/ 39/ 40/ 41/ 42/ 43/ 46(LAA)/ 48/ 66/ 71
- DL 4 × 4 MIMO: B1/ 2/ 3/ 4/ 7/ 25/ 30/ 38/ 40/ 41/ 42/ 43/ 48/ 66
- WCDMA: B1/ 2/ 4/ 5/ 8/ 19

* Weight：

* Temperature range:
- -30°C ~ +70°C (Operation Temperature)
- -40°C ~ +85°C (Extended Temperature)

* Control via AT Commands: 3GPP TS27.007 and Quectel Enhanced AT Commands

* Data Transmission:
- 5G SA Sub-6: Max. 2.4Gbps (DL)/ Max. 900Mbps (UL)
- 5G NSA Sub-6: Max. 3.2Gbps (DL)/ Max. 600Mbps (UL)
- 5G NSA mmWave: Max. 4.0Gbps (DL)/ Max. 1.4Gbps (UL)

* SMS

* Protocols: TCP/UDP/FTP/HTTP/HTTPS /PING/SMS

* Interfaces:
- (U)SIM × 2
- USB 2.0/3.0/3.1
- PCle: PCIe 4.0
- Antenna: Sub-6/GNSS x 4, mmWave x 2

* Enhanced Features
- MIMO: Sub-6 (4 x 4 DL, UL 2 x 2);
- Audio
- VoLTE：Optional
- DTMF: Dual-tone Multi-frequency
- DFOTA: Delta Firmware over the Air
- GNSS: GPS/GLONASS/Beidou/Galileo
- (U)SIM insert inspect

* Electrical Features
- Supply Voltage Range: 3.135V~4.4V, 3.7V Typ.
- Power Consumption
>TBD @Power off
>TBD @Sleep, Typ.
>TBD @Idle

* Software Features
- USB Serial Driver
> Windows 7/8/8.1/10,
> Linux 2.6-5.8,
> Android Android 4.x/5.x/6.x/7.x/8.x/9.x/10
- GNSS Driver: Android 4.x/5.x/6.x/7.x/8.x/9.x/10
- RIL Driver: Android 4.x/5.x/6.x/7.x/8.x/9.x/10
- NDIS Driver: Windows 7/8/8.1/10
- MBIM Driver: Windows 10, Linux 3.18-5.8
- Gobinet Driver: Linux 2.6~5.8
- QMI_WWAN Driver: Linux 3.4~5.8
- PCIe Driver: Windows 10, Linux 3.10~5.8, Android 4.x/5.x/6.x/7.x/8.x/9.x/10

* Certifications/Approvals: GCF*/CE*/PTCRB*/FCC*/IC*/JATE*/TELEC*/RCM*

* Applications: Industrial Router, Home gateway, Set-top box, Indurstrial PDA, Rugged Tablet PCs etc...
