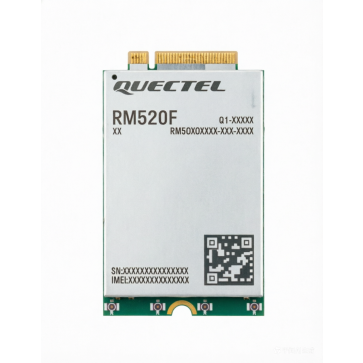

Quectel RM520F RM520F-GL RM520F-BL 5G Sub-6GHz Module

Quectel RM520F is a second-generation 5G Sub-6GHz module based on the Qualcomm Snapdragon X65 modem-RF system. Compliant with 3GPP Release 16 standards, it is designed in an M.2 form factor for high-performance applications like industrial routers, home gateways, and rugged computing.

Quectel RM520F series contains two variants: RM520F-GL and RM520F-BL. It supports Qualcomm IZat location technology Gen 9VT (GPS, GLONASS, BDS, Galileo and QZSS). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.

Quectel RM520F 5G Module Specifications:

* Product type: 5G cellular module

* Form Factor: M.2 (Key B)

* Chipset: Qualcomm Snapdragon X65 5G Modem-RF System

* 3GPP Standard: Release 16

* Modes: 5G NR (NSA and SA), LTE-A Cat 20, WCDMA (3G)

* Variant Models:
- Quectel RM520F-GL: 5G Band: n1, n3, n5, n8, n28, n41, n78, n79
- Quectel RM520F-BL: 5G Band: n2, n7, n25, n41, n66, n77, n78

* Max Download Speed: Up to 10 Gbps (theoretical peak for X65)

* Frequency Bands: Global Sub-6GHz coverage with TDD/FDD Carrier Aggregation (CA)

* Interfaces: USB 3.0/3.1, PCIe 3.0, eSIM (optional), PCM, UART

* Operating Temp: -30°C to +75°C (Extended: -40°C to +85°C)

* GNSS Support: Features a multi-constellation GNSS receiver supporting GPS, GLONASS, BDS, and Galileo for precise positioning.

* Carrier Aggregation: Supports advanced 3-component carrier (3CC) aggregation for Sub-6GHz, optimizing performance across available spectra.

* Compatibility: Designed to be pin-compatible with existing Quectel 5G RM50xQ and LTE-A Cat 6/12/16 modules, facilitating easy hardware migration.

* Software Capabilities: Supports DFOTA (Delta Firmware Over-the-Air) and VoLTE (optional).
