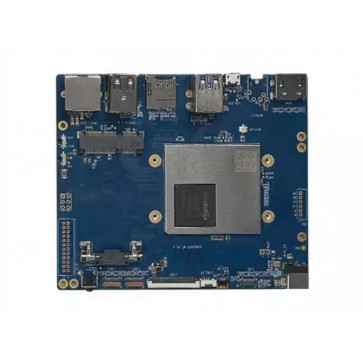

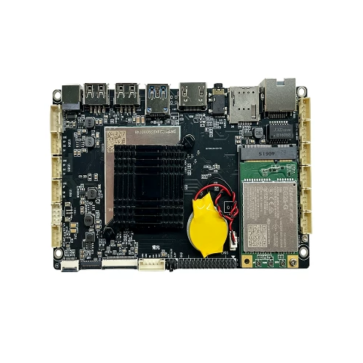

Quectel RK3568 Android Development Board Kit

Quectel RK3568 Android Development Board Specifications:

CPU: Rockchip RK3568 Cortex-A55 quad-core processor, running Linux/Android systems, with a main frequency up to 2.0 GHz
GPU: ARM Mali-G52 GPU
Memory: LPDDR4 2G/4G (optional), default 2G
Internal Storage: eMMC 16G/32G (optional), default 32G

Network Support:

• Supports global 2G/3G/4G/5G communication modules (with MINI PCIe support)

• Ethernet, 10/100M adaptive

• Supports Wi-Fi 2.4G/5.8G dual-band, compliant with IEEE 802.11b/g/n protocols

• Bluetooth 5.0, supporting both BR/EDR and BLE modes

Video Interfaces:

• LVDS single/dual-channel interface, supporting up to 1920×1080 resolution

• Supports MIPI DSI 1.2, with maximum resolution up to 1920×1080P

• Supports eDP 1.3, with maximum resolution up to 1920×1080P

• Supports HDMI 2.0, 4K×2K @ 60Hz

Audio Interfaces:

• 3.5mm headphone output (supports CTIA and OMTP, selectable)

• Speaker output 5W×2

• Microphone input support

USB:

• 5×USB 2.0, supporting high-speed mode, up to 480 Mbps

• 1×USB 3.0 / OTG

TF Card: Supports up to 128 GB

Serial Ports:

• 5×RS232/TTL, 1×RS485/TTL

• TTL level: 3.3V (default) / 5V

• Serial port power: 5V (default) / 3.3V

Touch Screen: Supports USB touch screens (infrared, resistive, capacitive, optical, and other touch types)

Real-Time Clock: Built-in RTC backup battery

Onboard Backlight: 3.3V / 5V / 12V backlight optional, supports backlight enable control and PWM brightness adjustment

Power Interface: 12V IN, DC jack 2.0mm, XH2.54-4P (optional)

Operating System: Android 13

System Upgrade: Supports OTA, TF card, USB, and PC upgrades

Screen Parameter Selection: Supports adjusting screen parameters via TF card

Video Formats:

• H.264 AVC/MVC Main10 Profile yuv400/yuv420/yuv422 @ L5.1

• H.265 HEVC/MVC Main10 Profile yuv420 @ L5.1

• H.264/AVC BP/MP/HP @ level 4.2

• H.265/HEVC MP @ level 4.1

Image Formats: JPG, GIF, BMP, PNG, and other various image formats supported

Audio Formats: AAC, APE, FLAC, M4A, MP3, OGG, WMA, 3GP, etc.

Language Support: Multi-language

Input Method: Standard Android keyboard, third-party input methods optional

System Management:

• File manager

• Native Android system with open root permissions, facilitating product customization and development

• Supports scheduled power on/off
