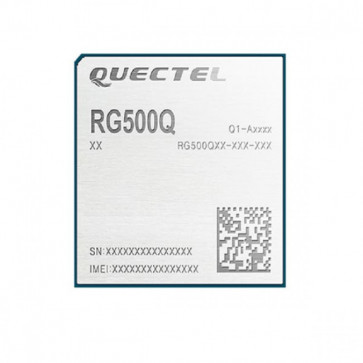

Quectel RG500Q-GT 5G Sub-6GHz Module

Quectel RG500Q-GT 5G Module Specifications:

* Product type: 5G wireless Module

* Chipset: Qualcomm Snapdragon

* Target Region: Global TDD 3.5 GHz

* Form factor: LGA

* Dimensions: 41.0 x 44.0 x 2.75mm

* Frequency Bands:
- 5G NR SA: n78
- 5G MIMO:
DL 4 × 4: n78
UL 2 × 2: n78
- LTE-FDD:
- LTE-TDD: B42/ 43
- 4G DL 4 x 4 MIMO: B42/43
- WCDMA:

* GNSS: N/A

* Weight: 11g

* Temperature range:
- -30°C ~ +75°C (Operation Temperature)
- -40°C ~ +85°C (Extended Temperature)

* Control via AT Commands: 3GPP TS27.007 and Quectel Enhanced AT Commands

* Data Transmission:
- 5G SA Sub-6: Max. 2.1Gbps (DL)/ Max. 900Mbps (UL)
- LTE-FDD: Max. 700Mbps (DL)/ Max. 116Mbps (UL)
- WCDMA:

* Protocols: TCP/UDP/FTP/HTTP/HTTPS /PING/SMS

* Interfaces:
- (U)SIM × 2, 1.8V/2.95V
- UART × 3
- SD card x 1
- USB 2.0/3.0/3.1 x 1
- PCle: PCIe Gen3 × 2 Lane
- RGMII x 1
- PCM x 1
- I2S x 1
- I2C × 1
- SPI x 1
- ADC
- Antenna: Cellular: 4

* Voice(Optional): Digital Audio and VoLTE (Voice over LTE)

* Enhanced Features
- MIMO 4 × 4 DL
- VoLTE Optional
- DTMF: Dual-tone Multi-frequency
- DFOTA Delta Firmware over the Air

* Electrical Features
- Supply Voltage Range: 3.3V~4.3V, 3.8V Typ.
- Power Consumption
>TBD @Power off
>TBD @Sleep, Typ.
>TBD @Idle

* Software Features
- USB Serial Driver
> Windows 7/8/8.1/10/11,
> Linux 2.6~6.5,
> Android 4.x-13.x
- GNSS Driver: Android 4.x-13.x
- RIL Driver: Android 4.x-13.x
- NDIS Driver: Windows 7/8/8.1/10/11
- MBIM Driver: Windows 7/8/8.1/10/11, Linux 2.6~6.5,
- Gobinet Driver: Linux 2.6~6.5,
- QMI_WWAN Driver: Linux 2.6~6.5,
- PCIe Driver Windows 10, Linux 2.6~6.5,, Android 4.x-13.x

* Certifications: CE
